Home >> Suzuki >> 2013 >> Kizashi Base, Standard Trans >> Repair and Diagnosis >> Steering >> Power Steering >> Power Assisted Steering System >> Repair Instructions >> Steering Gear Case Assembly Components

Steering Gear Case Assembly Components

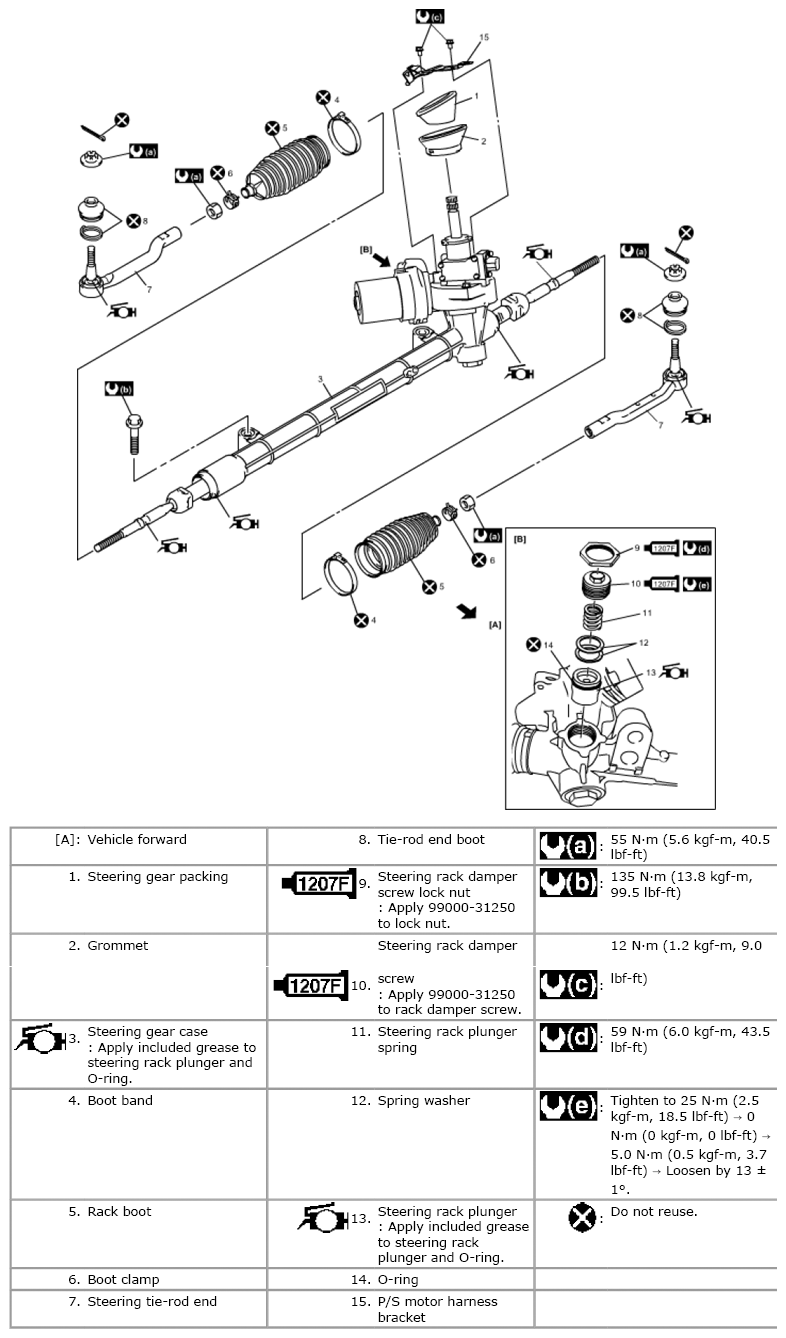

Fig 1: Steering Gear Case Assembly Replacement Components With Torque Specifications

G06528942

Courtesy of SUZUKI OF AMERICA CORP.
