P/S Warning Light Check

  1. Push engine switch to change ignition mode of keyless push start system to "ON" (without engine running) and check if "P/S" warning light (1) comes on. If the light does not come on, go to P/S WARNING LIGHT DOES NOT COME ON WITH IGNITION MODE CHANGE TO "ON" BEFORE ENGINE STARTS  of the diagnostic flows.
  2. Start engine and check if "P/S" warning light turns OFF. If light remains ON and no DTC is detected, go to P/S WARNING LIGHT REMAINS ON STEADY AFTER ENGINE STARTS  for troubleshooting.

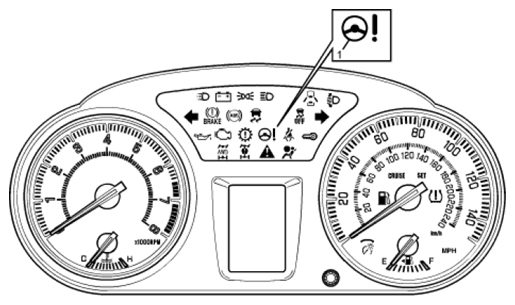

    Fig 1: Identifying P/S Warning Light
    G06528923Courtesy of SUZUKI OF AMERICA CORP.
