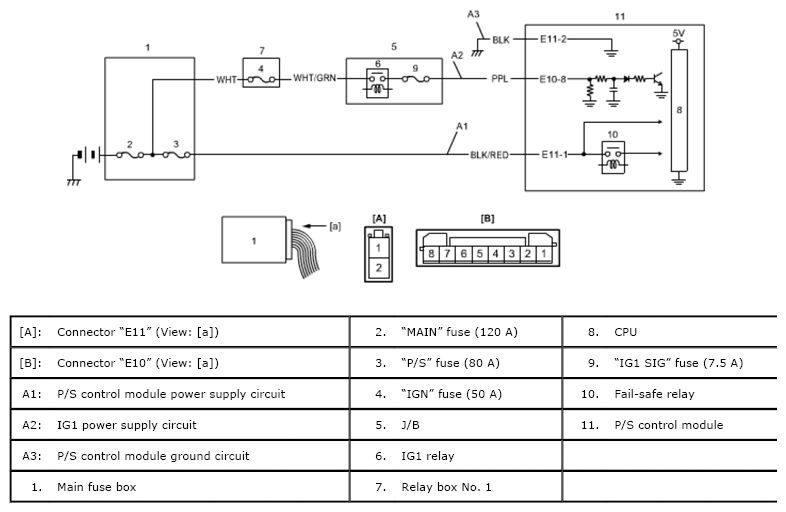

Home >> Suzuki >> 2013 >> Kizashi Base, Standard Trans >> Repair and Diagnosis >> Steering >> Power Steering >> Power Assisted Steering System >> Diagnostic Information and Procedures >> P/S Control Module Power Supply and Ground Circuit Check >> Circuit Diagram
