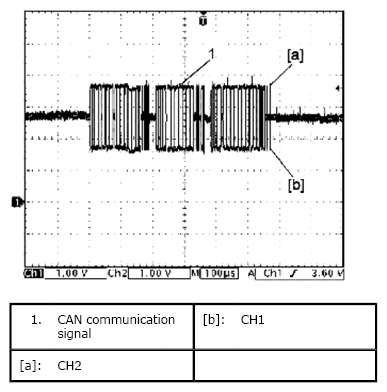

CAN Communication Signal

CAN COMMUNICATION TERMINALS REFERENCE

Channel Probe Terminal No.
CH1 + E10-4
- Ground
CH2 + E10-6
- -

Measurement condition
