Section 102 (Audio Visual/Navigation)
>>
Schematic and Routing Diagram
>>
Audio System Circuit Diagram
>>
With Audio Amplifier
With Audio Amplifier
WARNING:
This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

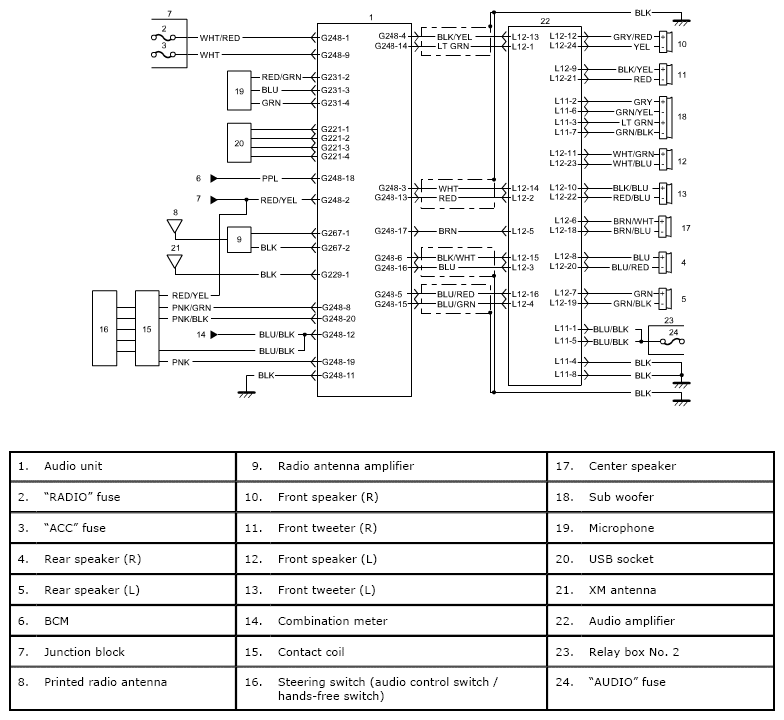

Fig 1: Audio System Circuit Diagram - With Audio Amplifier
Courtesy of SUZUKI OF AMERICA CORP.
