USB Socket Inspection

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Reference: USB SOCKET REMOVAL AND INSTALLATION

Check continuity between each terminal of socket side and harness side of USB socket as shown in figure. If check result is not as specified, replace USB socket.

Fig 1: USB Socket Continuity Chart

Courtesy of SUZUKI OF AMERICA CORP.

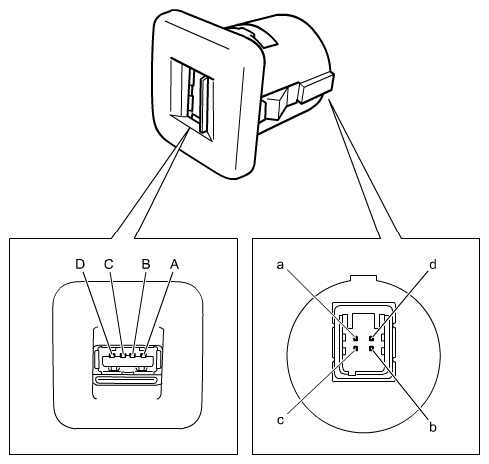

Fig 2: Identifying USB Socket Connector Terminals

Courtesy of SUZUKI OF AMERICA CORP.
