Fuel Pump Control System Circuit Diagram

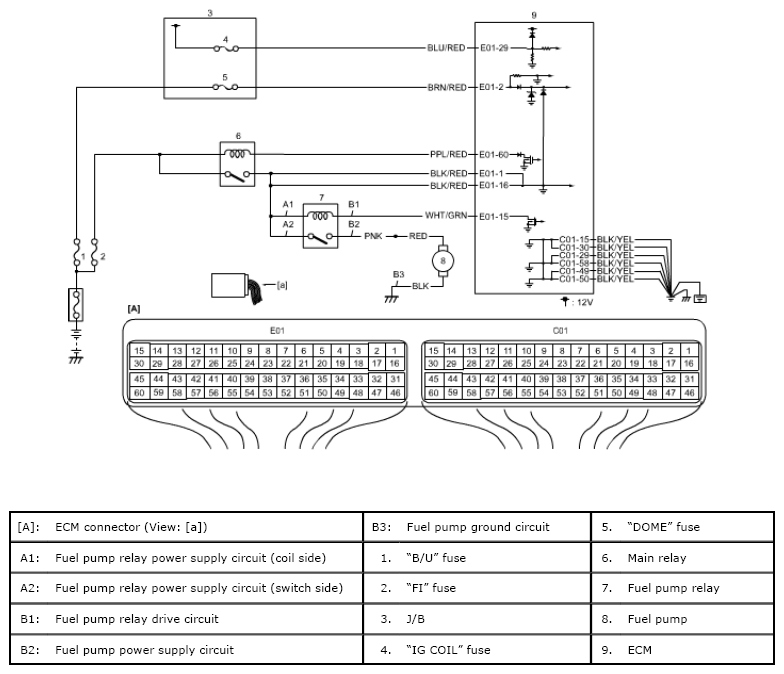

Fig 1: Fuel Pump Control System Circuit Diagram

G06526519

Courtesy of SUZUKI OF AMERICA CORP.
