Fuel Injector Control System Circuit Diagram

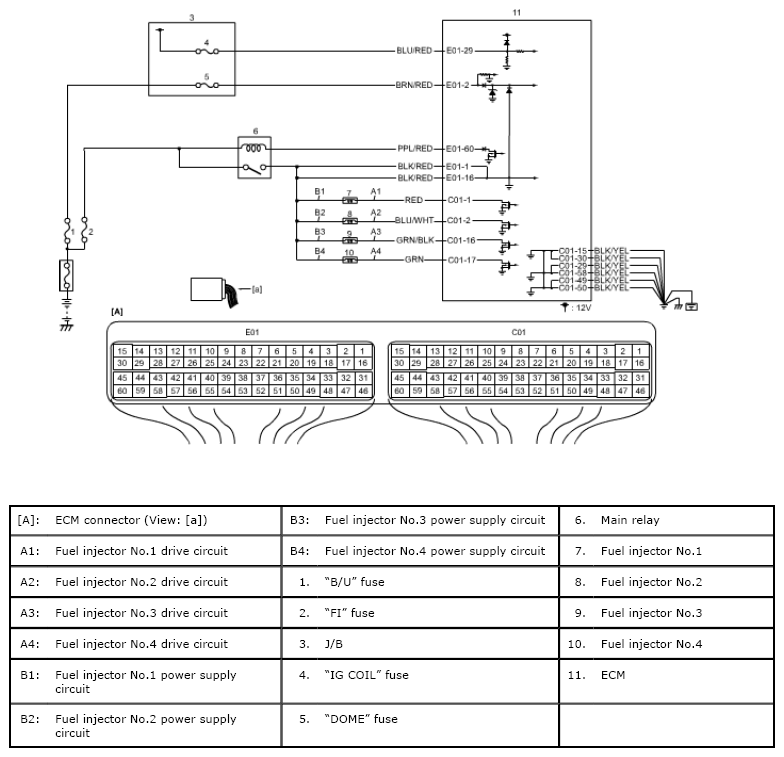

Fig 1: Fuel Injector Control System Circuit Diagram

G06526518

Courtesy of SUZUKI OF AMERICA CORP.
