Oil Pump Assembly Components

NOTE: The parts with * (asterisk) are not available as replacement parts individually. If any detect is found on those parts, replace oil pump assembly.

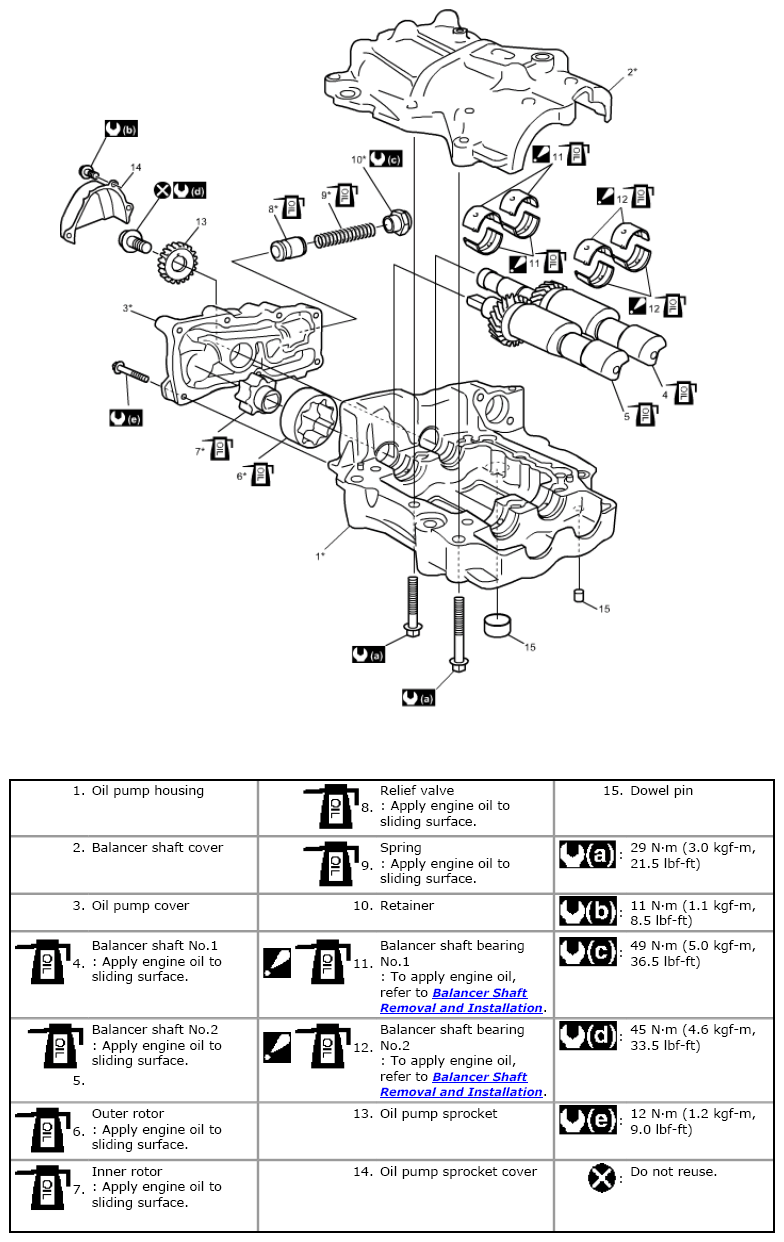

Fig 1: Oil Pump Assembly Replacement Components With Torque Specifications
G06528178Courtesy of SUZUKI OF AMERICA CORP.
