F-3 Electronic Stability Program System Circuit Diagram

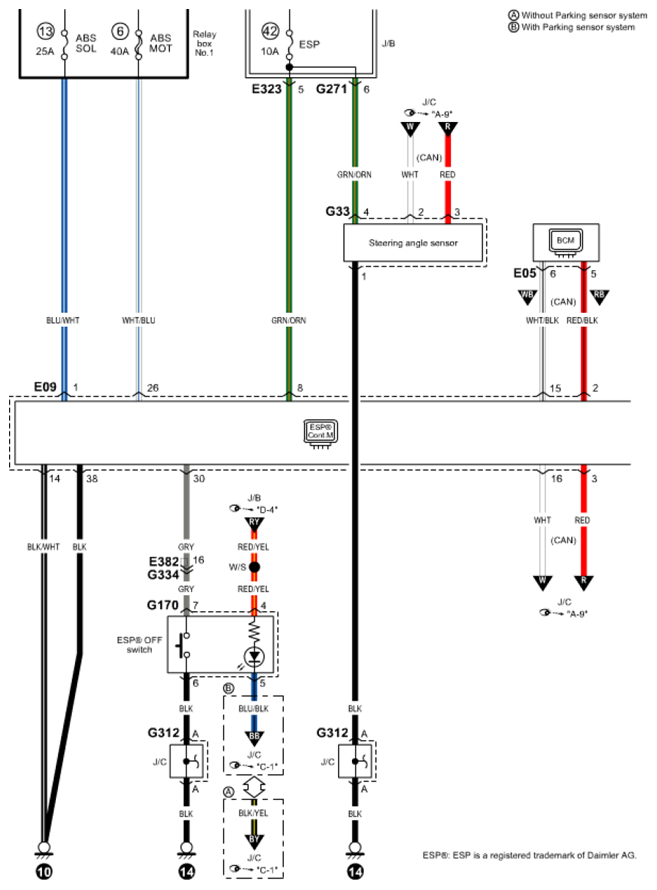

Fig 1: Electronic Stability Program System Circuit Diagram (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

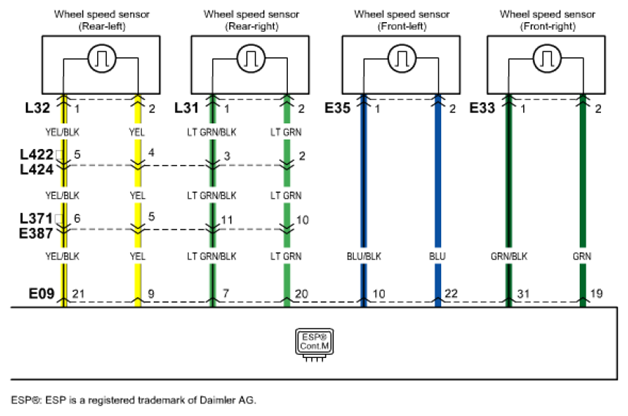

Fig 2: Electronic Stability Program System Circuit Diagram (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.
