Right Side

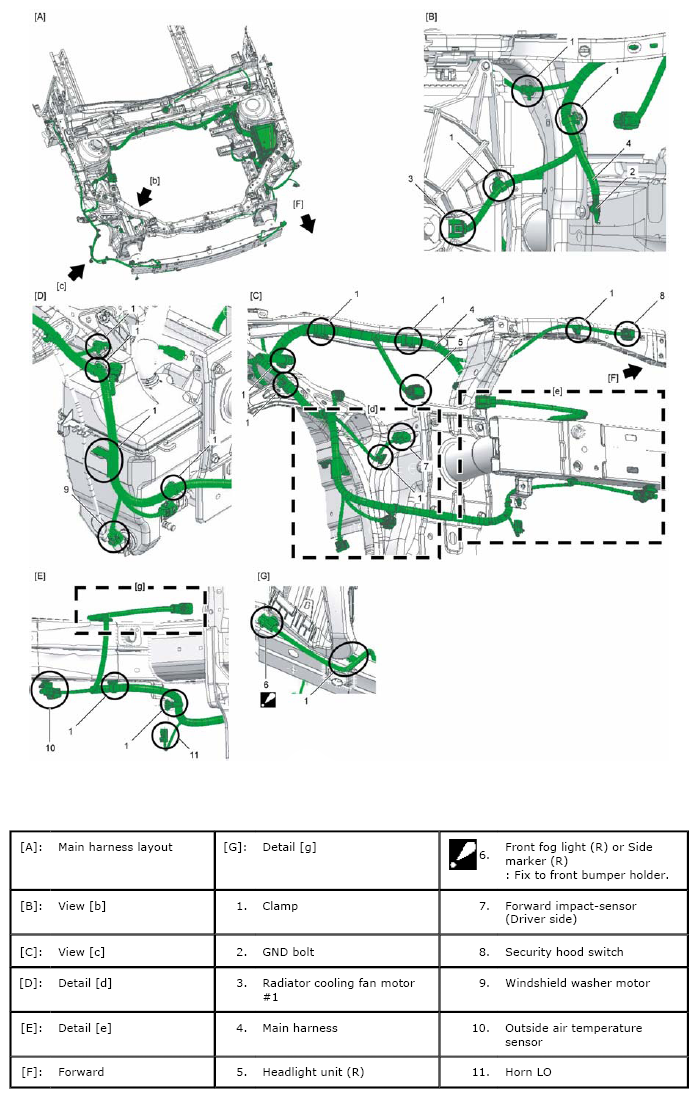

Fig 1: Identifying Wiring Harness - Around Strut (Right Side)

G06527171

Courtesy of SUZUKI OF AMERICA CORP.
