Home >> Suzuki >> 2013 >> Kizashi Base, Standard Trans >> Repair and Diagnosis >> Body & Frame >> Seats >> Component Location >> Power Seat Control System Component Location

Power Seat Control System Component Location

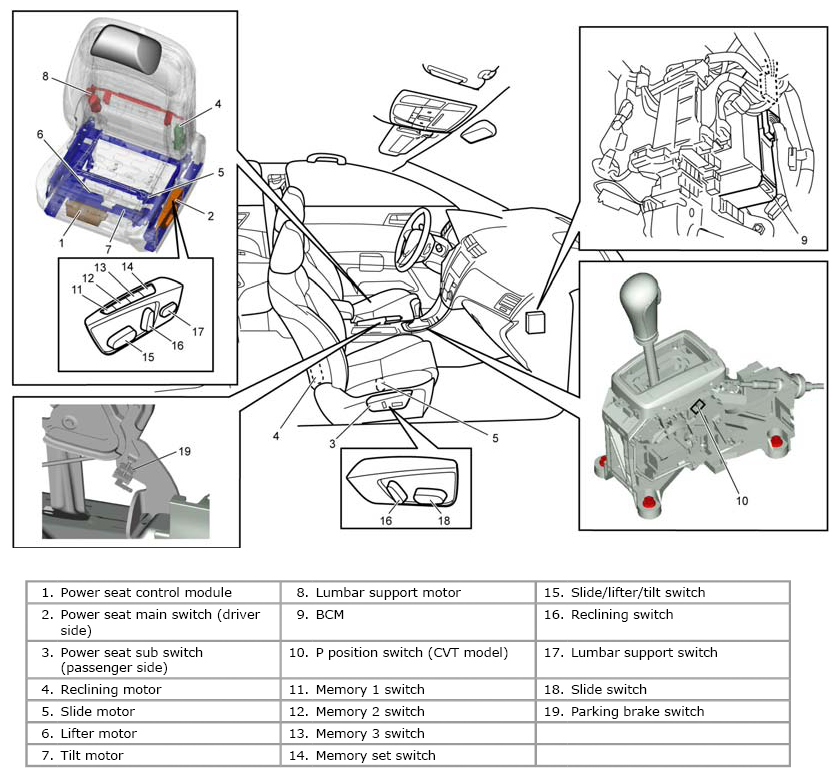

Fig 1: Identifying Power Seat Control System Component Location

G06530134

Courtesy of SUZUKI OF AMERICA CORP.
