Front Window Regulator Assembly Removal and Installation: Installation
Reference: FRONT WINDOW REGULATOR ASSEMBLY INSPECTION
Reverse removal procedure noting the following points.
- Apply grease to sliding parts of front window regulator assembly.
: Grease 99000-25011 (SUZUKI Super Grease A)
- Tighten each part to specified torque referring to FRONT DOOR COMPONENTS .

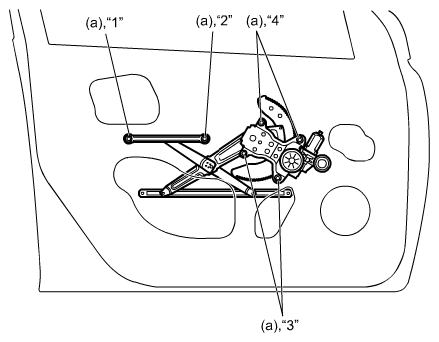

- Tighten front window regulator bolts in order ("1" to "4") to specified torque.
Tightening torque
Front window regulator bolt (a): 8.4 N.m (0.86 kg-m, 6.5 lbf-ft)
- Initialize power window setup if front window regulator assembly is replaced, see POWER WINDOW SYSTEM INITIALIZATION/RESET (FRONT WINDOWS ONLY) .
