Immobilizer Control System Component Location

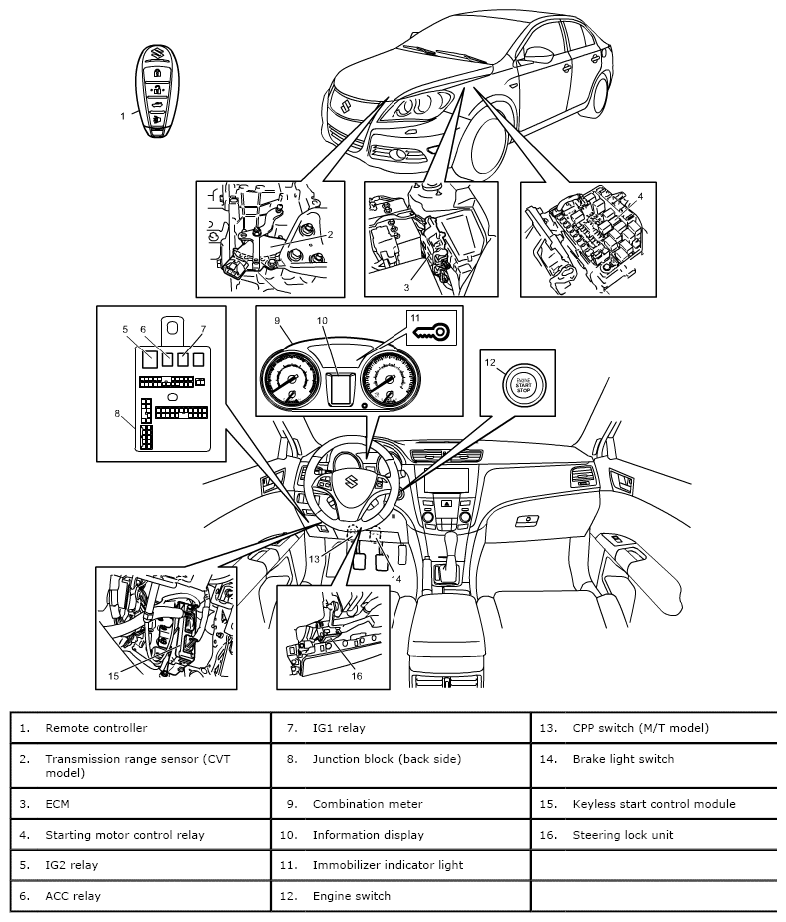

Fig 1: Identifying Immobilizer Control System Component Location

G06529318

Courtesy of SUZUKI OF AMERICA CORP.
