G-3 Accessory Socket System Circuit Diagram

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

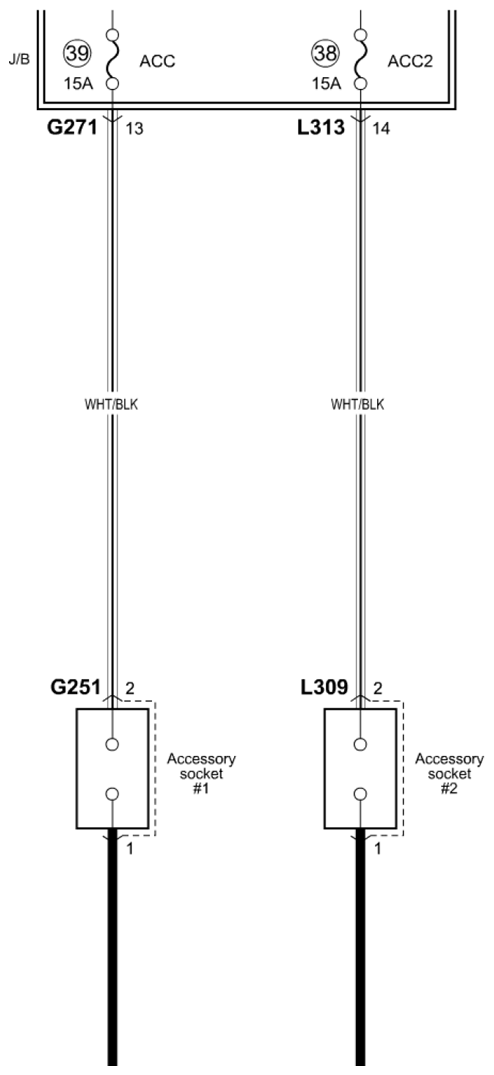

Fig 1: Accessory Socket System Circuit Diagram
G06527142Courtesy of SUZUKI OF AMERICA CORP.
