Brake Light Switch Inspection

Reference: BRAKE LIGHT SWITCH REMOVAL AND INSTALLATION

Check brake light switch for continuity between terminals at each switch position.

If check result is not as specified, replace switch with attaching piece.

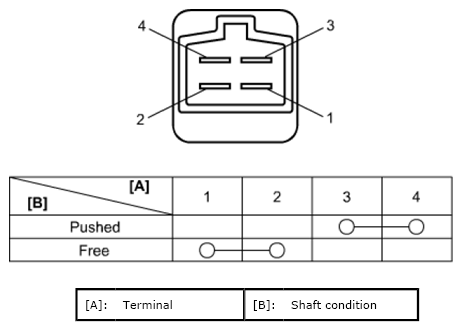

Fig 1: Identifying Brake Light Switch Terminal

Courtesy of SUZUKI OF AMERICA CORP.

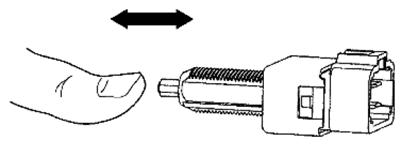

Fig 2: Checking Brake Light Switch

Courtesy of SUZUKI OF AMERICA CORP.
