Rear Door Components
Rear Door Components

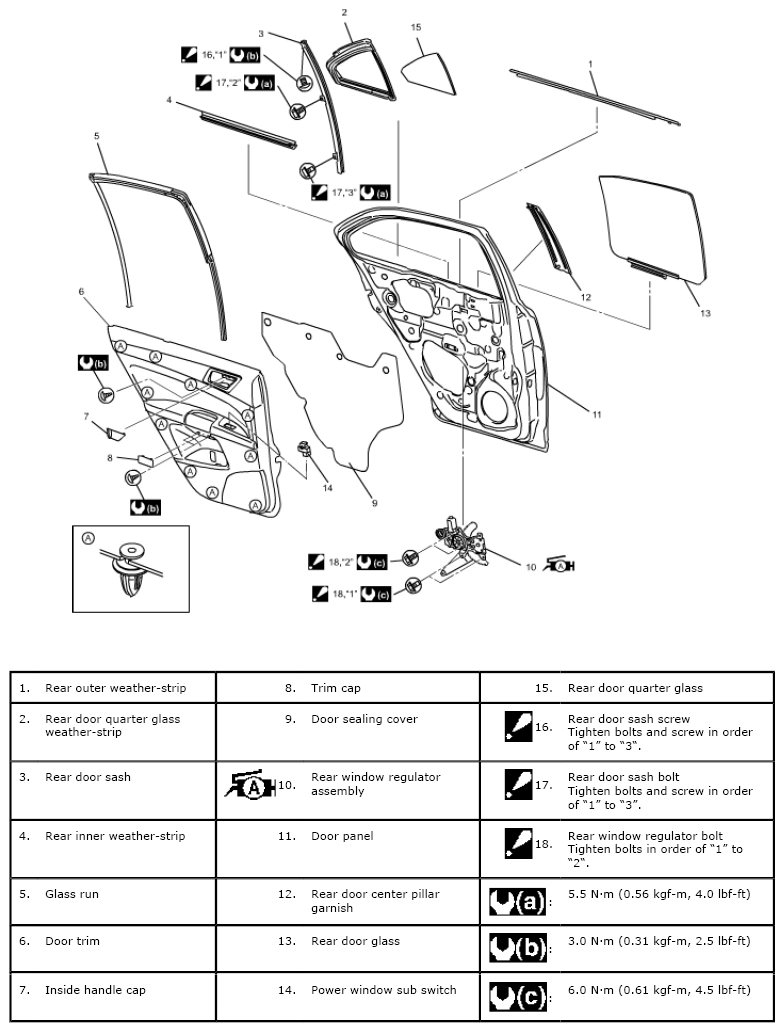

Fig 1: Rear Door Replacement Components With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
