Power Window Sub Switch Inspection

Check continuity between terminals at each switch position.

If check result is not as specified, replace switch.

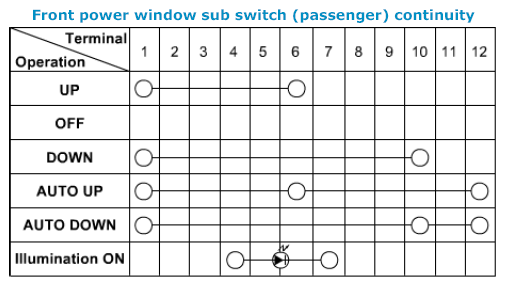

Fig 1: Front Power Window Sub Switch (Passenger) Continuity Chart

Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Identifying Front Power Window Sub Switch Connector Terminals (Passenger)

Courtesy of SUZUKI OF AMERICA CORP.

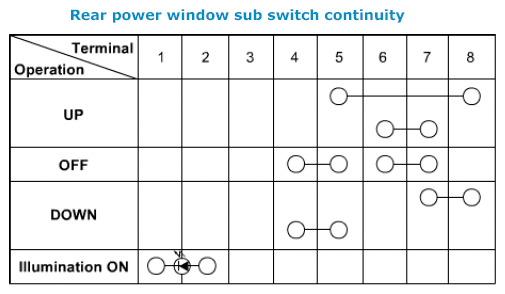

Fig 3: Rear Power Window Sub Switch Continuity Chart

Courtesy of SUZUKI OF AMERICA CORP.

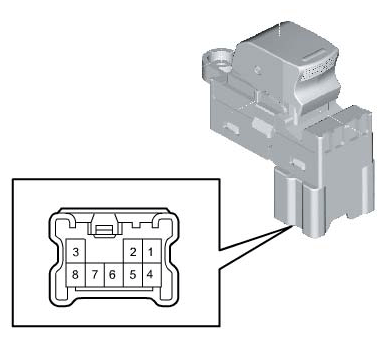

Fig 4: Identifying Rear Power Window Sub Switch Connector Terminals

Courtesy of SUZUKI OF AMERICA CORP.
