Front Door Components

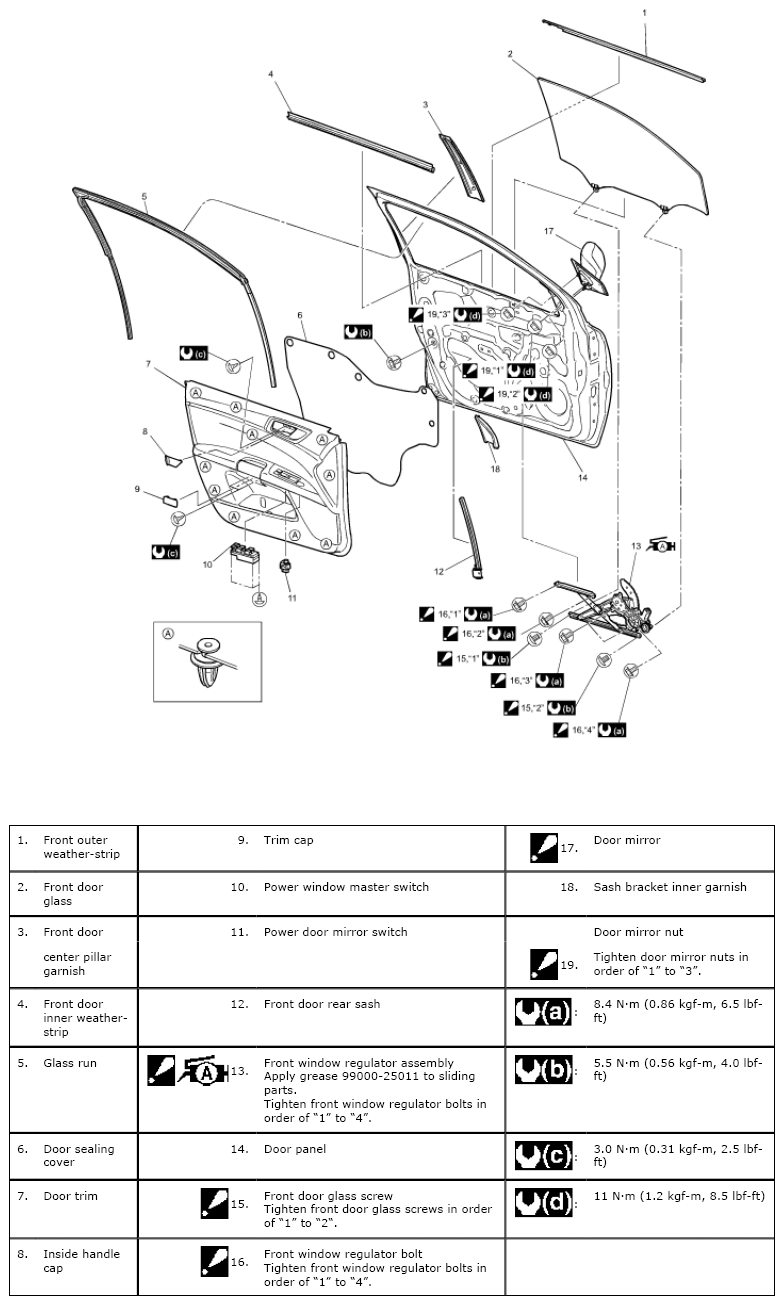

Fig 1: Front Door Replacement Components With Torque Specifications

G06529135

Courtesy of SUZUKI OF AMERICA CORP.
