Home >> Suzuki >> 2013 >> Grand Vitara Base >> Repair and Diagnosis >> Brakes >> Traction Control >> Electronic Stability Program >> Schematic and Routing Diagram >> Electronic Stability Program Wiring Circuit Diagram >> Notes

Electronic Stability Program Wiring Circuit Diagram: Notes

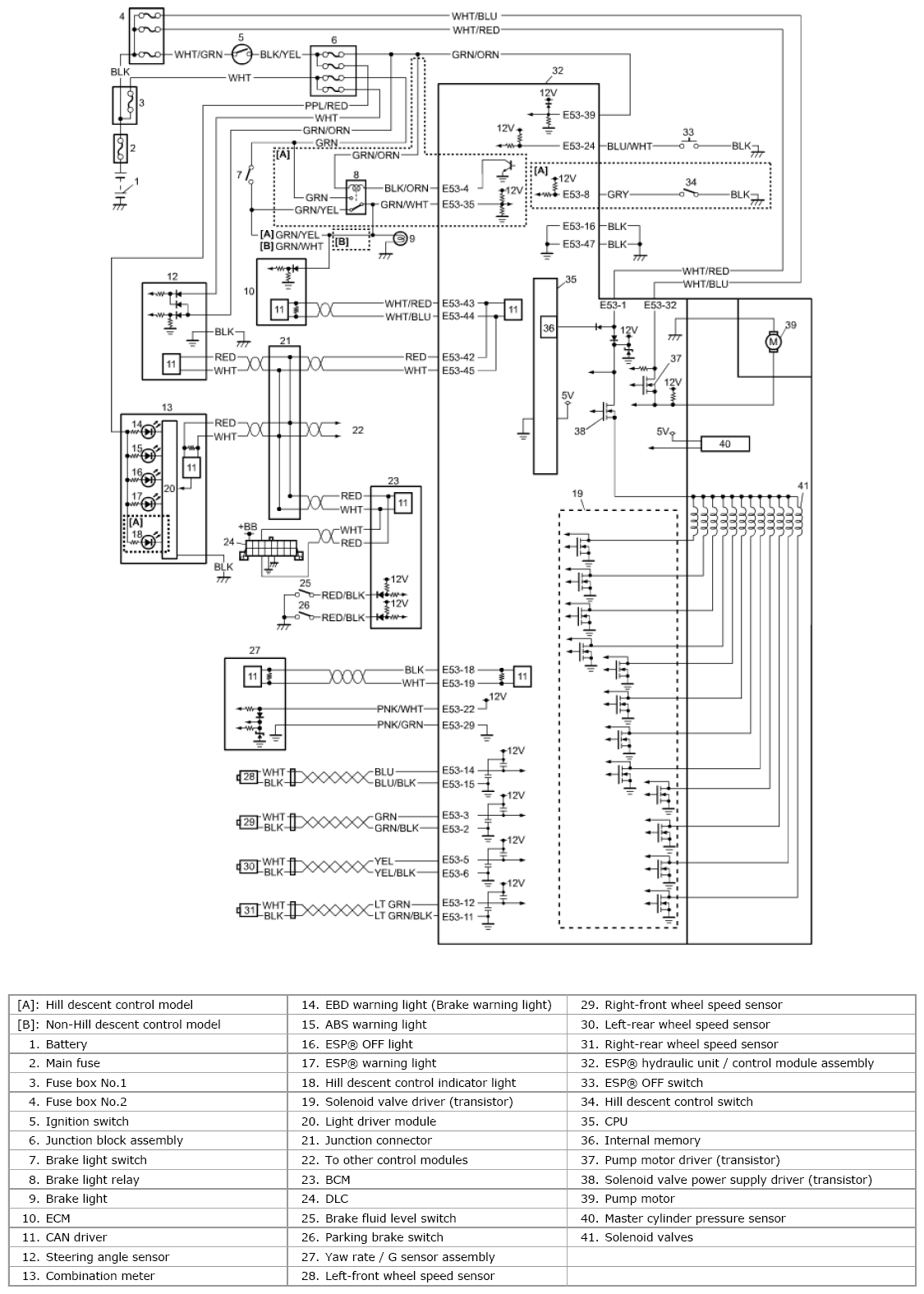

Fig 1: Electronic Stability Program - Circuit Diagram

G08895808

Courtesy of SUZUKI OF AMERICA CORP.
