Combination Meter Circuit Diagram: Notes

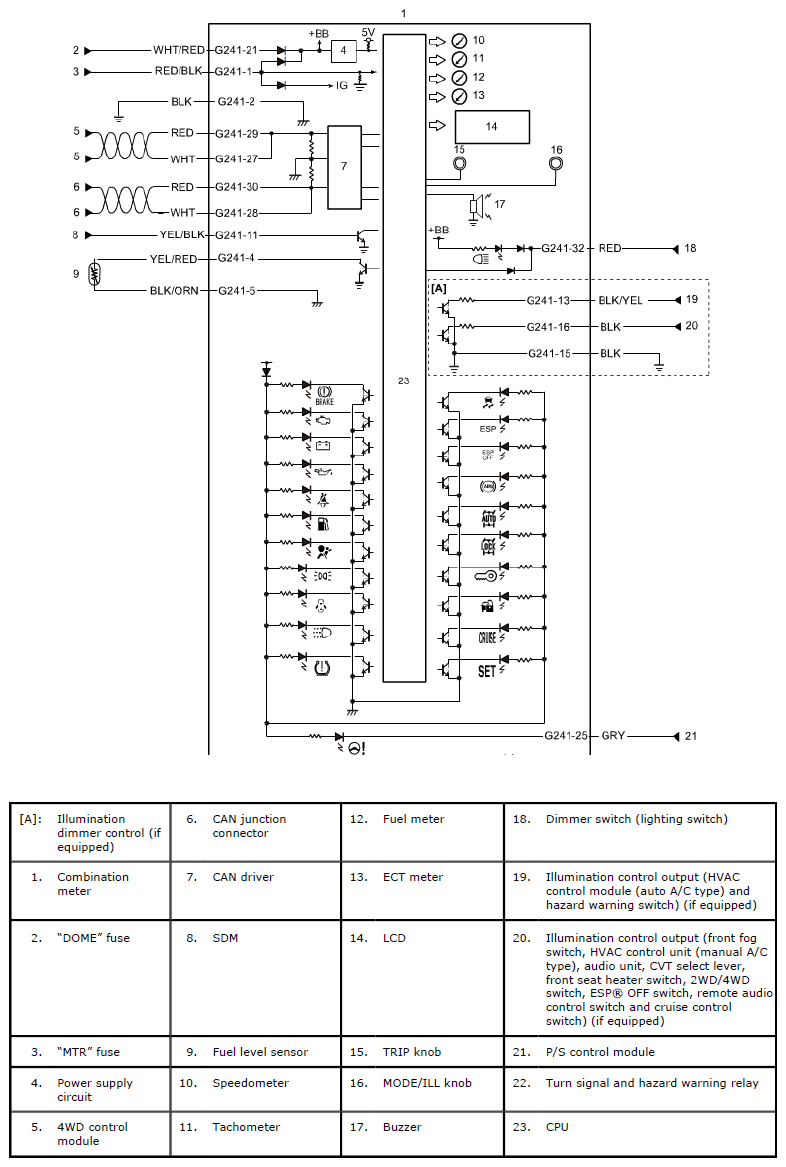

Fig 1: Combination Meter Circuit Diagram

G06869148

Courtesy of SUZUKI OF AMERICA CORP.
