Gear Shift Control Lever and Cable Components

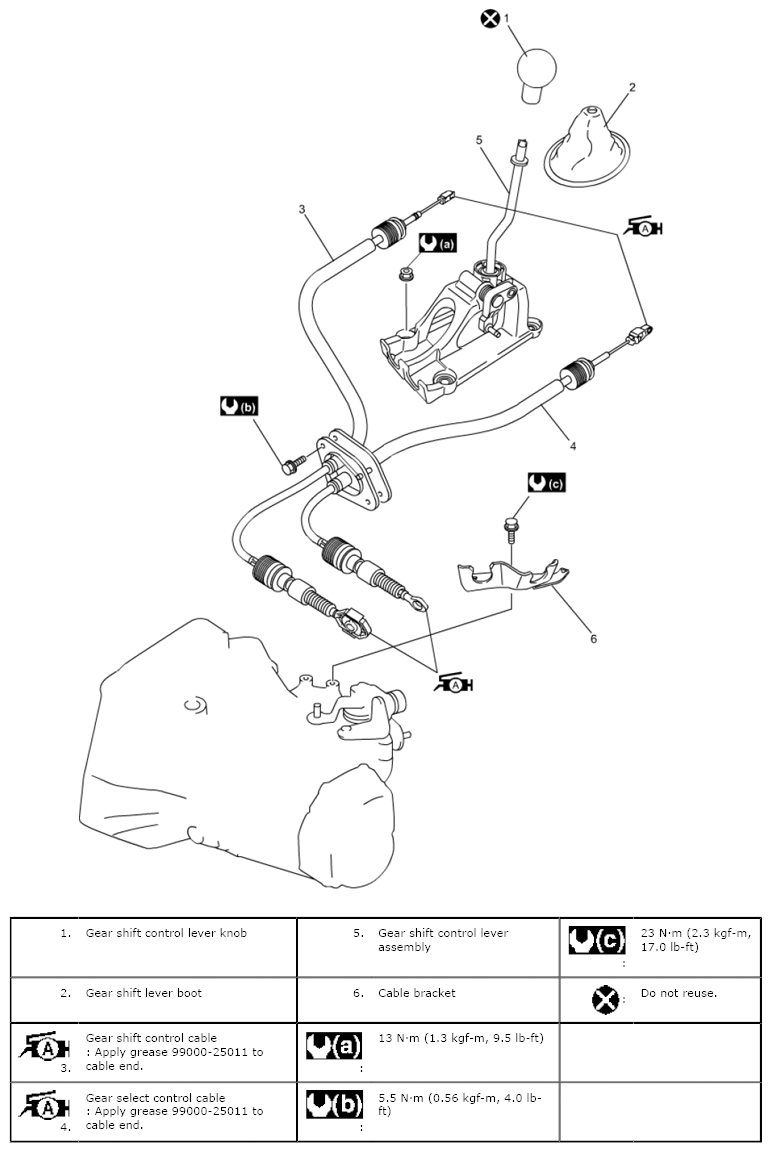

Fig 1: Identifying Gear Shift Control Lever And Cable Components

G06868599

Courtesy of SUZUKI OF AMERICA CORP.
