PCV Valve Removal and Installation: Installation
Reference: PCV VALVE INSPECTION
Reverse removal procedure for installation noting the following.

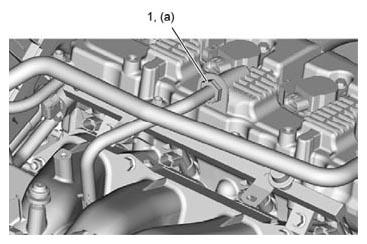

- Apply sealant to thread part of PCV valve (1).
- Tighten PCV valve to specified torque.
Tightening torque
PCV valve (a): 2.5 N.m (0.25 kg-m, 2.0 lbf-ft)
- Connect PCV hose to PCV valve securely.
