Suzuki
>>
2012
>>
SX4 LE, Automatic CVT Trans
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Wiring Systems
>>
System Circuit Diagram
>>
G-1 Audio System Circuit Diagram
G-1 Audio System Circuit Diagram

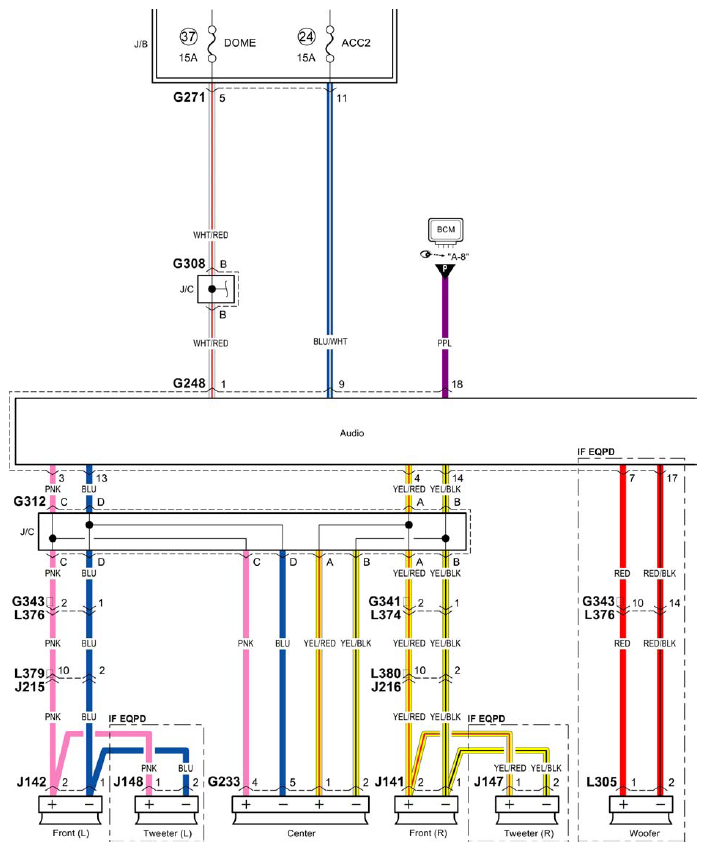

Fig 1: G-1 Audio System Circuit Diagram (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

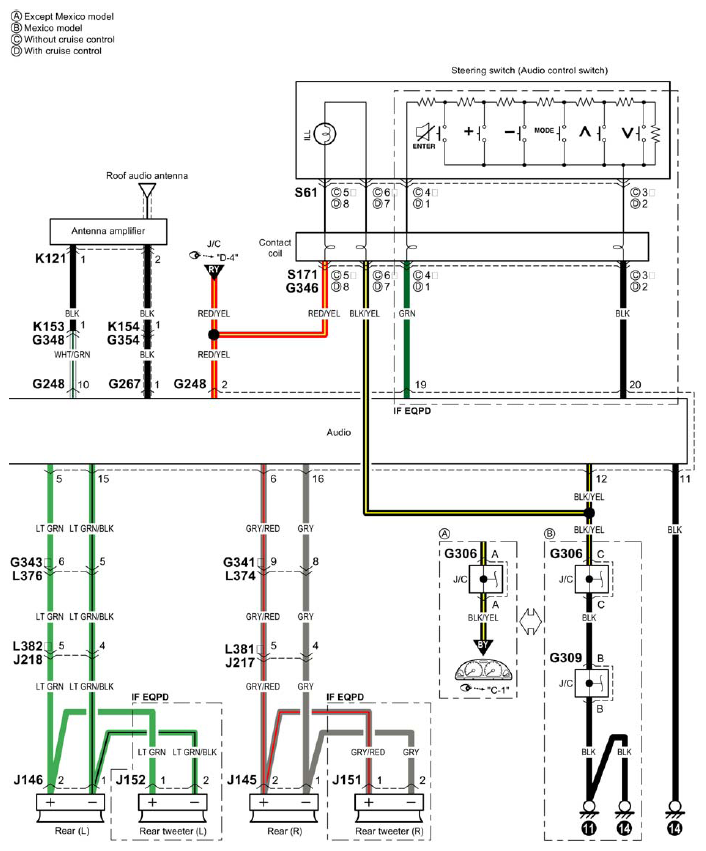

Fig 2: G-1 Audio System Circuit Diagram (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
