D-1 Head light System Circuit Diagram

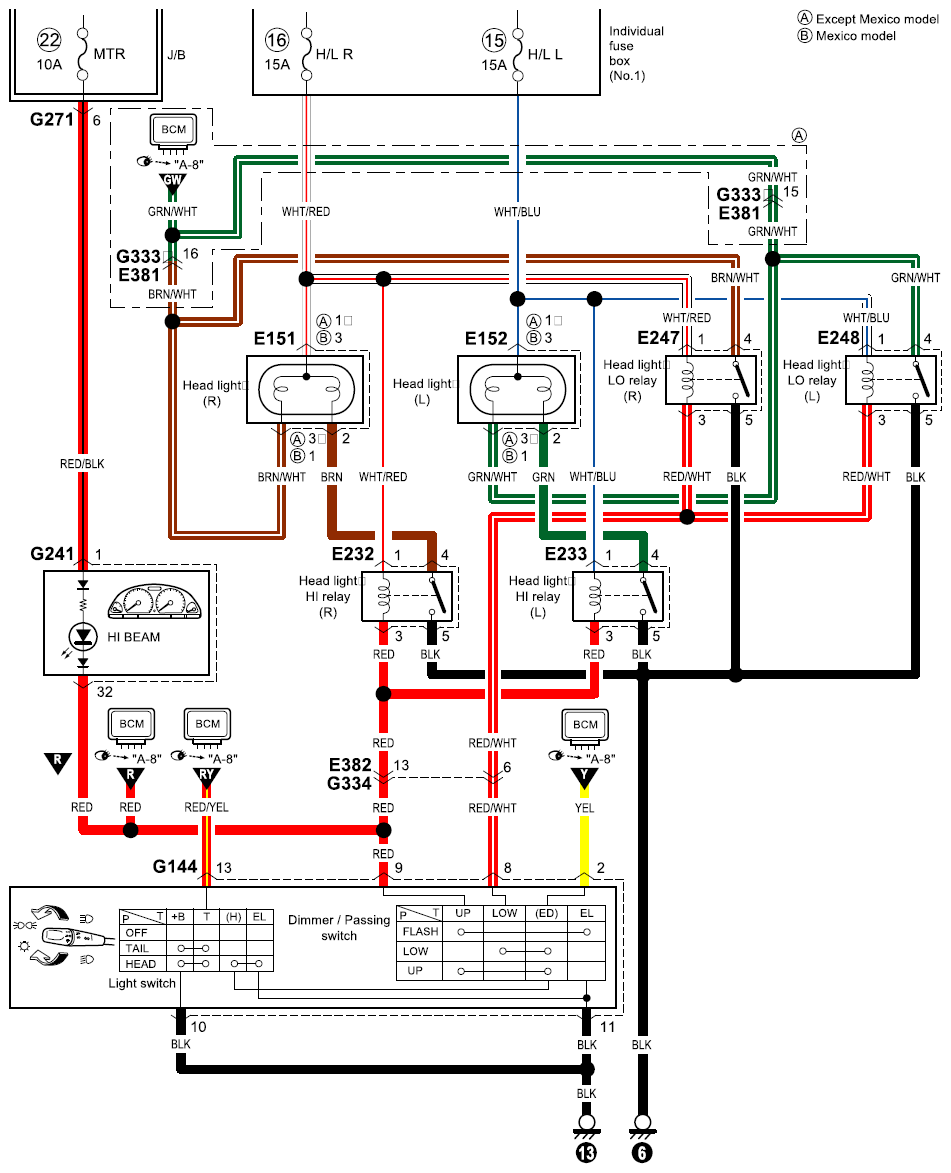

Fig 1: D-1 Head Light System Circuit Diagram

G06871251

Courtesy of SUZUKI OF AMERICA CORP.
