A-7 Immobilizer System Circuit Diagram

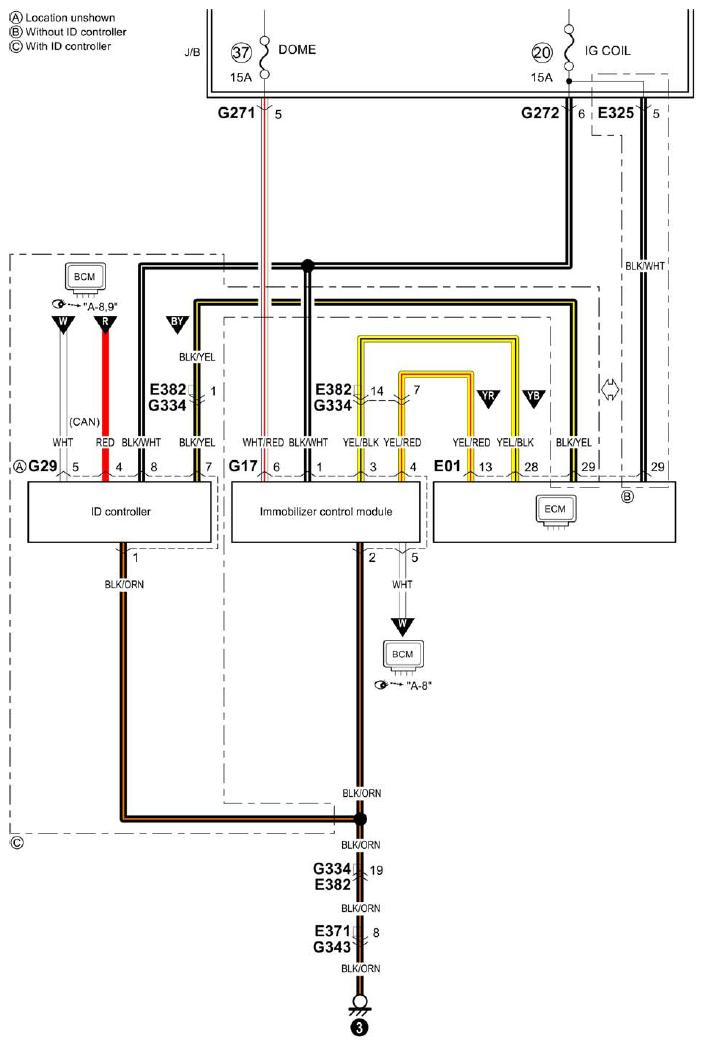

Fig 1: A-7 Immobilizer System Circuit Diagram

G06871228

Courtesy of SUZUKI OF AMERICA CORP.
