Power Door Mirror Switch Inspection

  1. Remove driver side door trim referring to step 1) to 3) of FRONT DOOR GLASS REMOVAL AND INSTALLATION .
  2. Remove power window main switch from door trim.
  3. Check for continuity between terminals at each switch position.

    If check result is not as specified, replace door mirror switch.

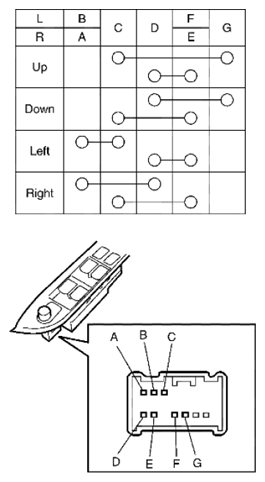

    Fig 1: Inspecting Power Door Mirror Switch
    G06868881Courtesy of SUZUKI OF AMERICA CORP.
