Gear Shift and Select Shaft Assembly Components

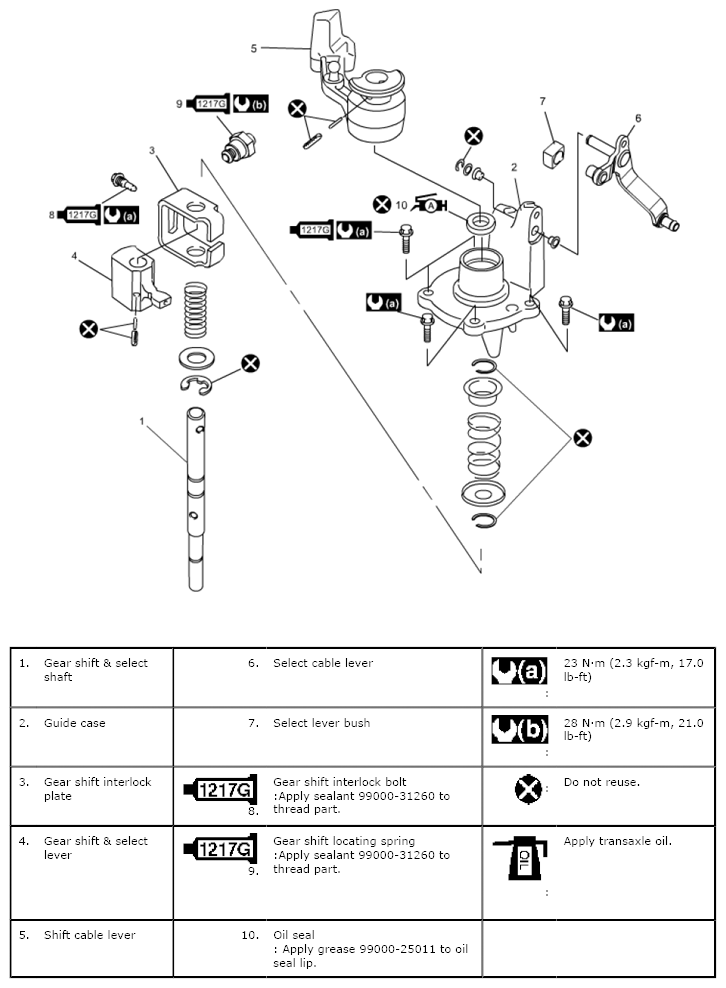

Fig 1: Identifying Gear Shift And Select Shaft Assembly Components

G06868613

Courtesy of SUZUKI OF AMERICA CORP.
