Steering Gear Case Assembly Components

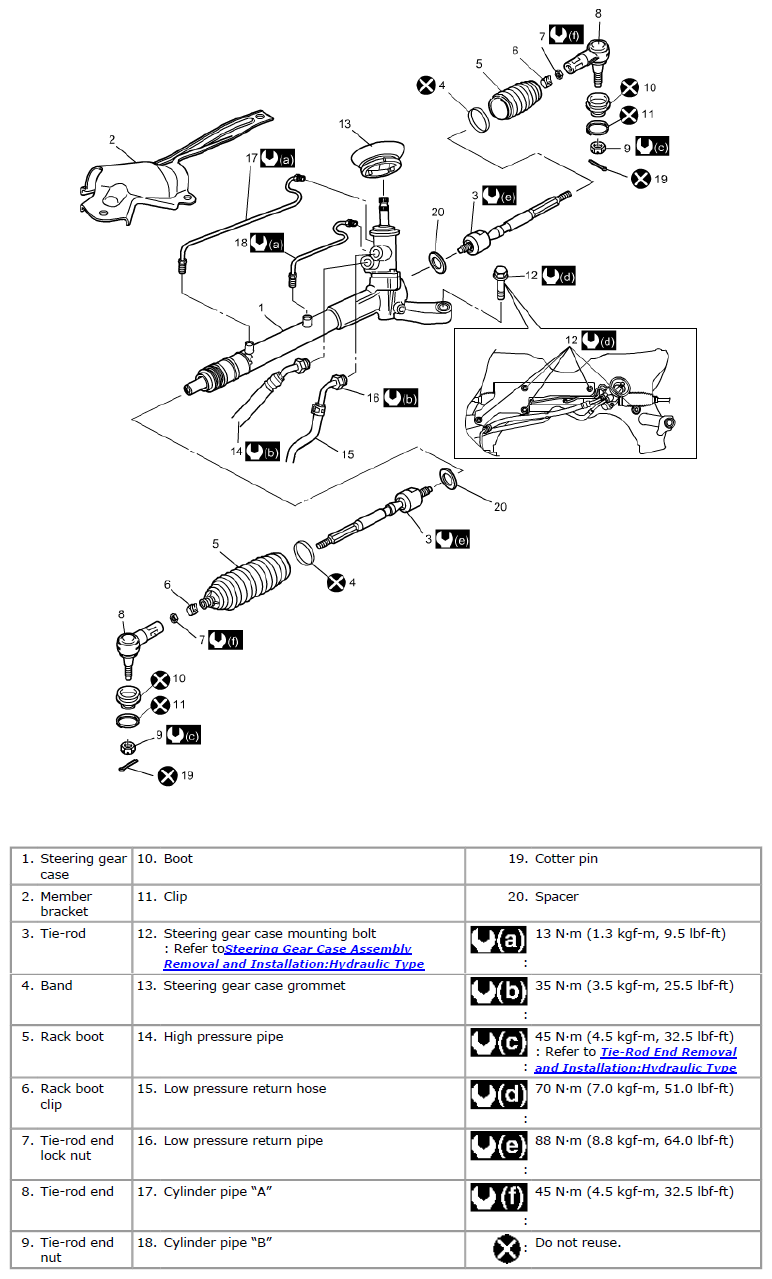

Fig 1: Identifying Steering Gear Case Assembly Components
G06867528Courtesy of SUZUKI OF AMERICA CORP.
NOTE: Component enclosed in broken line cannot be disassembled and adjusted.
