Home >> Suzuki >> 2012 >> SX4 Base >> Repair and Diagnosis >> Steering >> Power Steering >> Power Assisted Steering System - Hydraulic >> Repair Instructions >> P/S Pump Components

P/S Pump Components

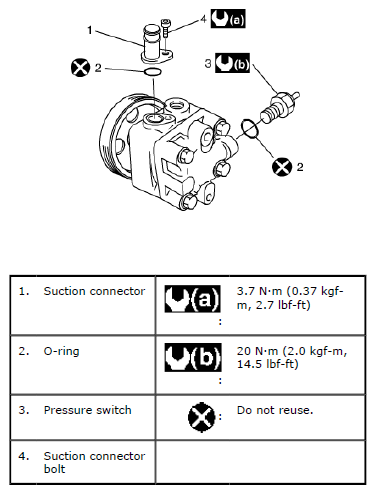

Fig 1: Identifying P/S Pump Components

G06867547

Courtesy of SUZUKI OF AMERICA CORP.
