P/S Hose/Pipe Components

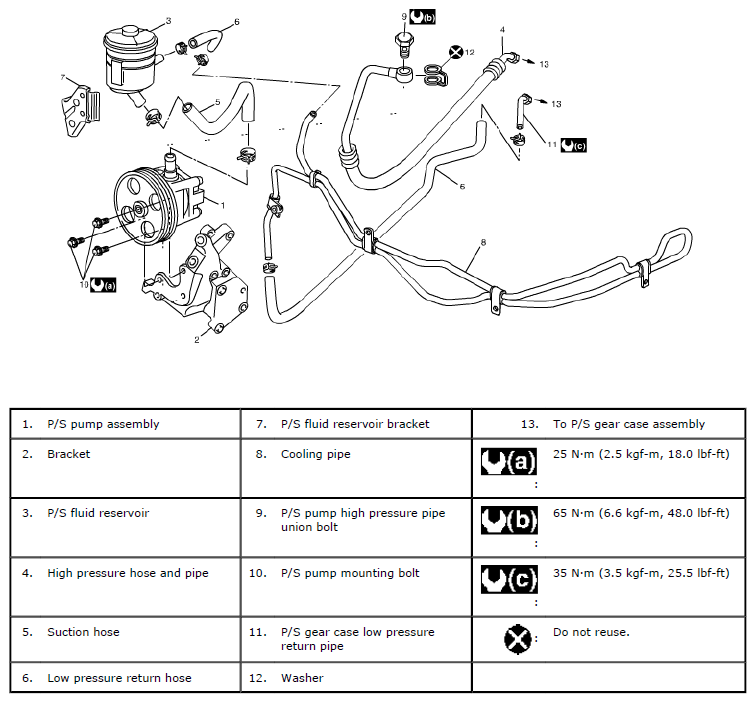

Fig 1: Identifying P/S Hose/Pipe Components

G06867544

Courtesy of SUZUKI OF AMERICA CORP.
