Steering Gear Case Assembly Components

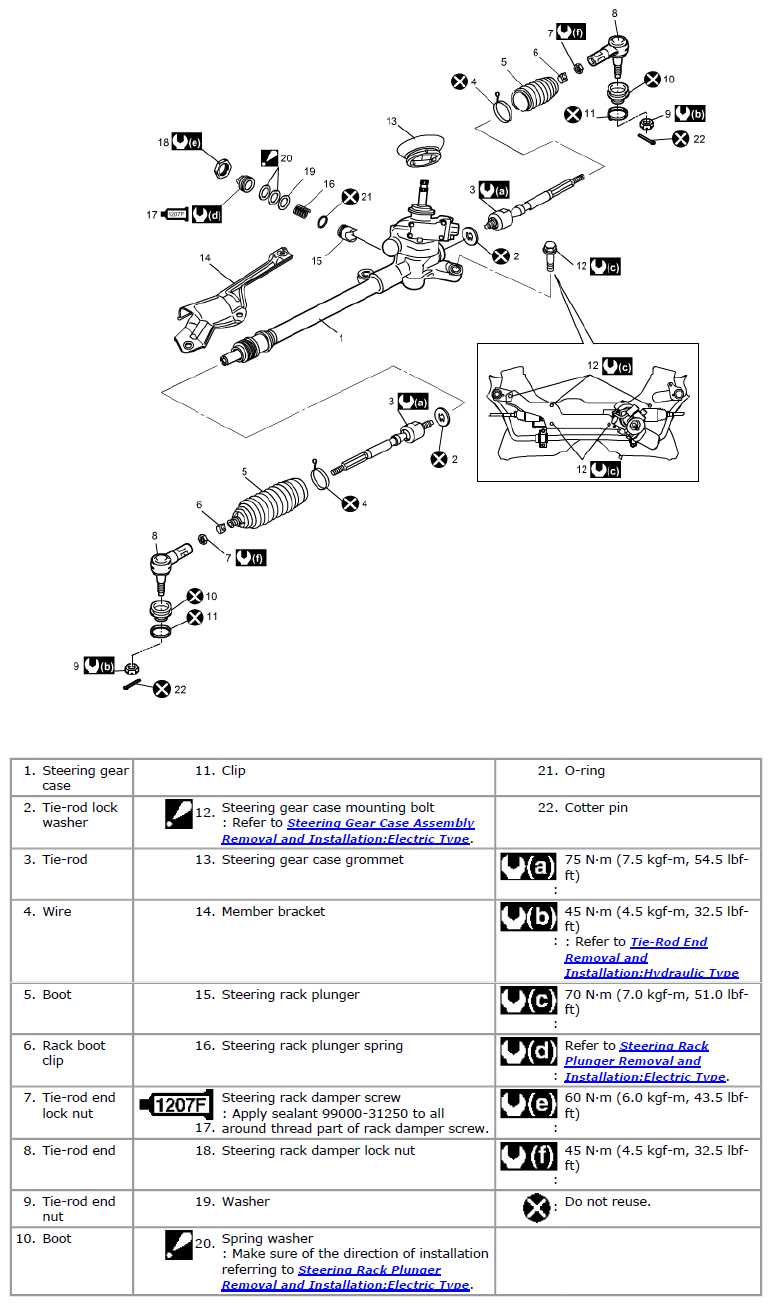

Fig 1: Identifying Steering Gear Case Assembly Components

G06867578

Courtesy of SUZUKI OF AMERICA CORP.
