Using SUZUKI Scan Tool

  1. Turn ignition switch to OFF position.
  2. Connect scan tool (SUZUKI-SDT) to Data Link Connector (DLC), located on underside of instrument panel at driver's seat side.
  3. Turn ignition switch to ON position.
  4. Select "TPMS ID registration with LF tool" of "MISC TEST" under "BCM" mode of scan tool.
  5. Using TPM Activation Tool (09945-86510), activate each tire pressure sensor, according to the instructions displayed on activation tool, within 90 seconds.
    NOTE: Ensure activation tool is positioned as shown in Fig 1, or sensor IDs may not register.
    NOTE: If ID code registration of all 4 tire pressure sensors does not occur within 90 seconds, repeat procedure.
  6. As each tire pressure sensor is activated, the activation tool will flash its LED and beep. If the activation tool is working properly but does not flash and beep, replace faulty tire pressure sensor.
  7. To verify the IDs are being registered, observe the flash patterns of the dashboard low tire pressure warning light. See Tire Pressure Sensor Activation Specifications  table.
    Tire Pressure Sensor Activation Specifications

    Tire Pressure Warning Light
    Blink Pattern    		 Tire Sensor Activation
    Steady On/Off Pattern No Tire Sensor Signal Received
    3 Blinks w/ 1.5 sec. Pause 1 Tire Sensor Signal Received
    2 Blinks w/ 1.5 sec. Pause 2 Tire Sensor Signals Received
    1 Blink w/ 1.5 sec. Pause 3 Tire Sensor Signals Received
    Light On For 5 sec. 4 Tire Sensor Signals Received
  8. When tire pressure sensor is activated, ID code of tire pressure sensor is registered automatically in TPM system controller. When "ID CODE REGI STATUS" indicated on SUZUKI scan tool is "COMPLETE", registration has been completed. If "TIMEOUT" is indicated, perform registration procedure again.
    NOTE: It is possible to check the number of ID codes of tire pressure sensors received by TPM system controller by observing the flashing pattern of low tire pressure warning light.
    NOTE: When TPM system controller receives each ID code of the 4 tire pressure sensors, TPM system controller turns the warning light on for 5 seconds. If warning light starts flashing on/off after the 5-second period, replace TPM system controller, as an internal fault has occurred.
  9. Turn ignition switch to OFF position. Disconnect scan tool from DLC.

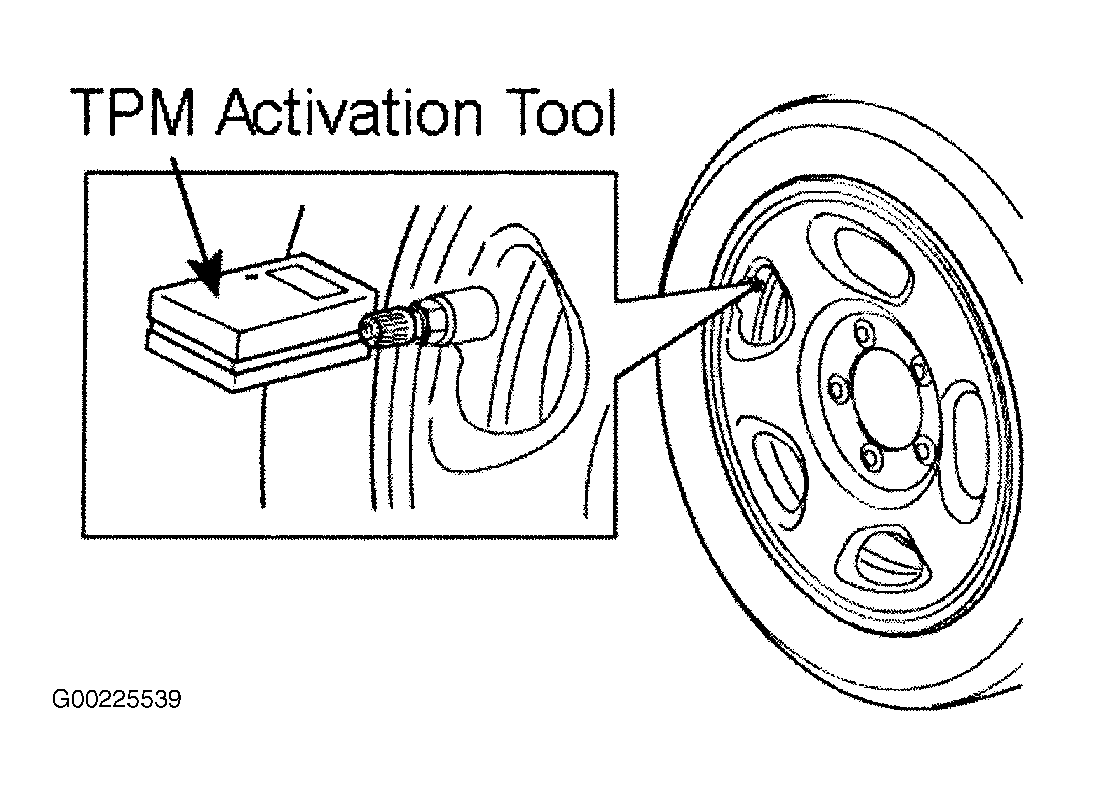

    10. Fig 1: Using TPM Activation Tool
    G00225539Courtesy of SUZUKI OF AMERICA CORP.
