Continuity Check

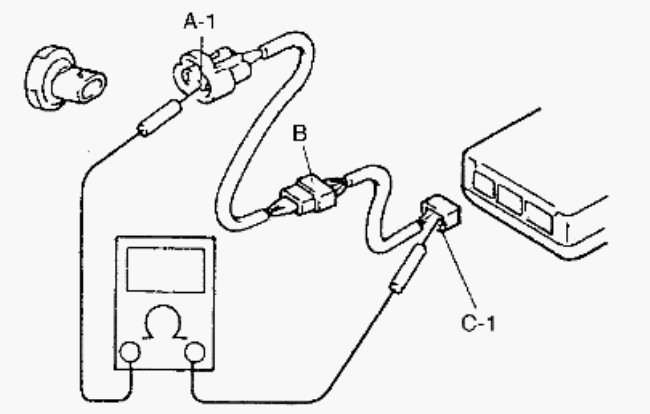

- Measure resistance between connector terminals at both ends of the circuit being checked (between "A-1" and "C-1" shown in figure). If no continuity is indicated (infinity or over limit), that means that the circuit is open between terminals "A-1" and "C-1".
Courtesy of SUZUKI OF AMERICA CORP.

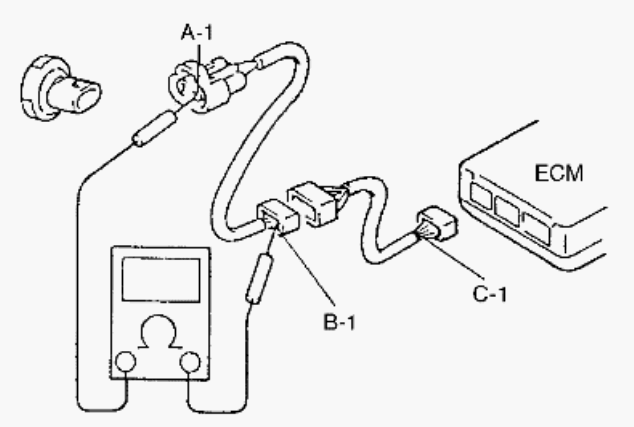

- Disconnect the connector included in the circuit (connector-B in the figure) and measure resistance between terminals "A-1" and "B-1". If no continuity is indicated, that means that the circuit is open between terminals "A-1" and "B-1". If continuity is indicated, there is an open circuit between terminals "B-1" and "C-1" or an abnormality in connector-B.
Courtesy of SUZUKI OF AMERICA CORP.
