Section 1 (Continuously Variable Transaxle (CVT))
>>
Schematic and Routing Diagram
>>
Transmission Control Module (TCM) CIRCUIT Diagram
Transmission Control Module (TCM) CIRCUIT Diagram
WARNING:
This page is about a different variant/trim than selected.

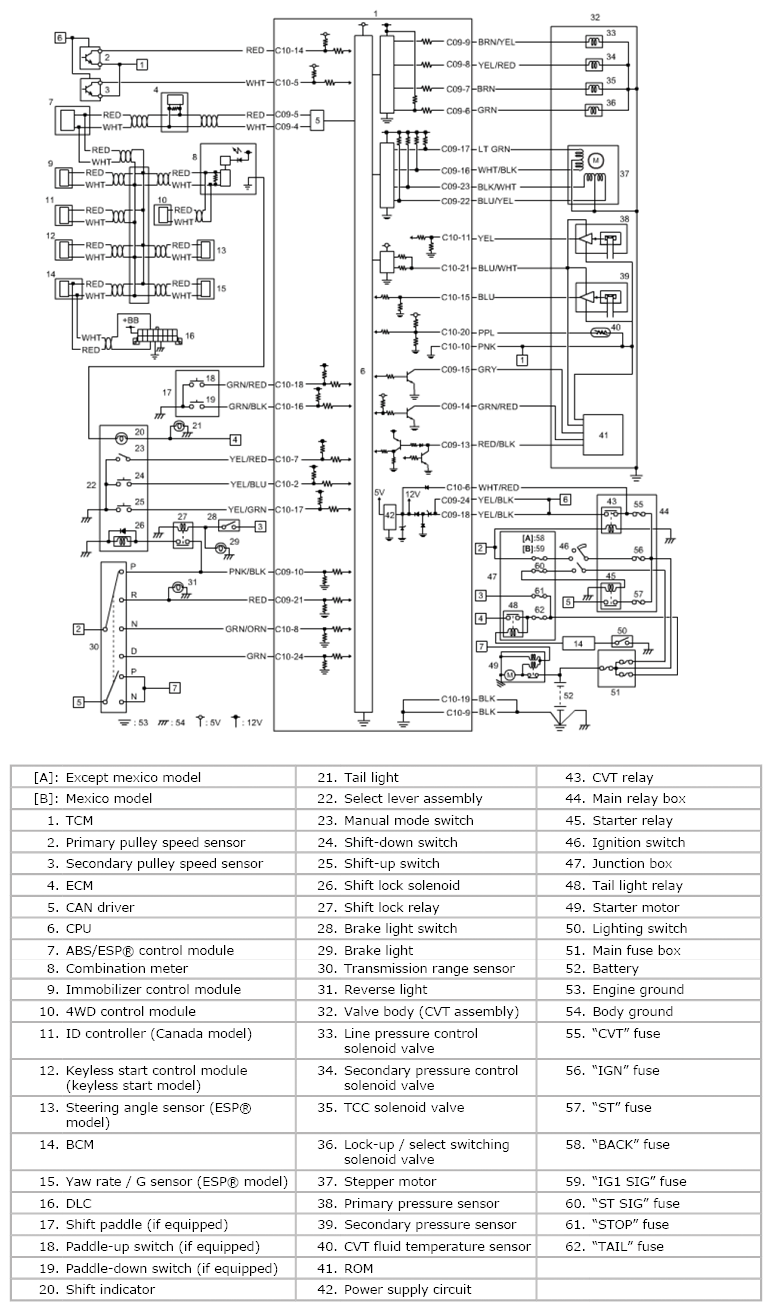

Fig 1: Transmission Control Module (TCM) Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
