Manual Mode Shift Switch Inspection

WARNING: This page is about a different variant/trim than selected.
  1. Remove console box. See CONSOLE BOX COMPONENTS
  2. Disconnect select lever connector (1).
  3. Check for continuity between terminals at each switch position. If check result is not as specified, replace select lever assembly.

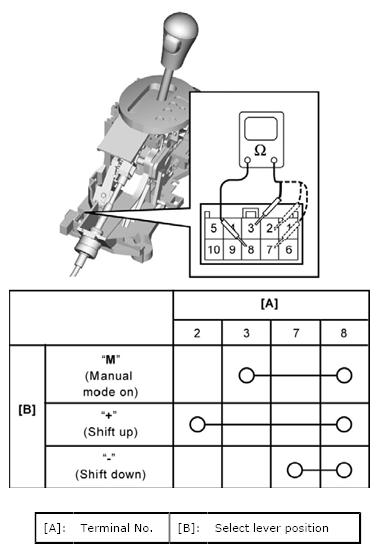

    Fig 1: Inspecting Manual Mode Shift Switch
    G06866774Courtesy of SUZUKI OF AMERICA CORP.
