CVT Assembly Components

WARNING: This page is about a different variant/trim than selected.

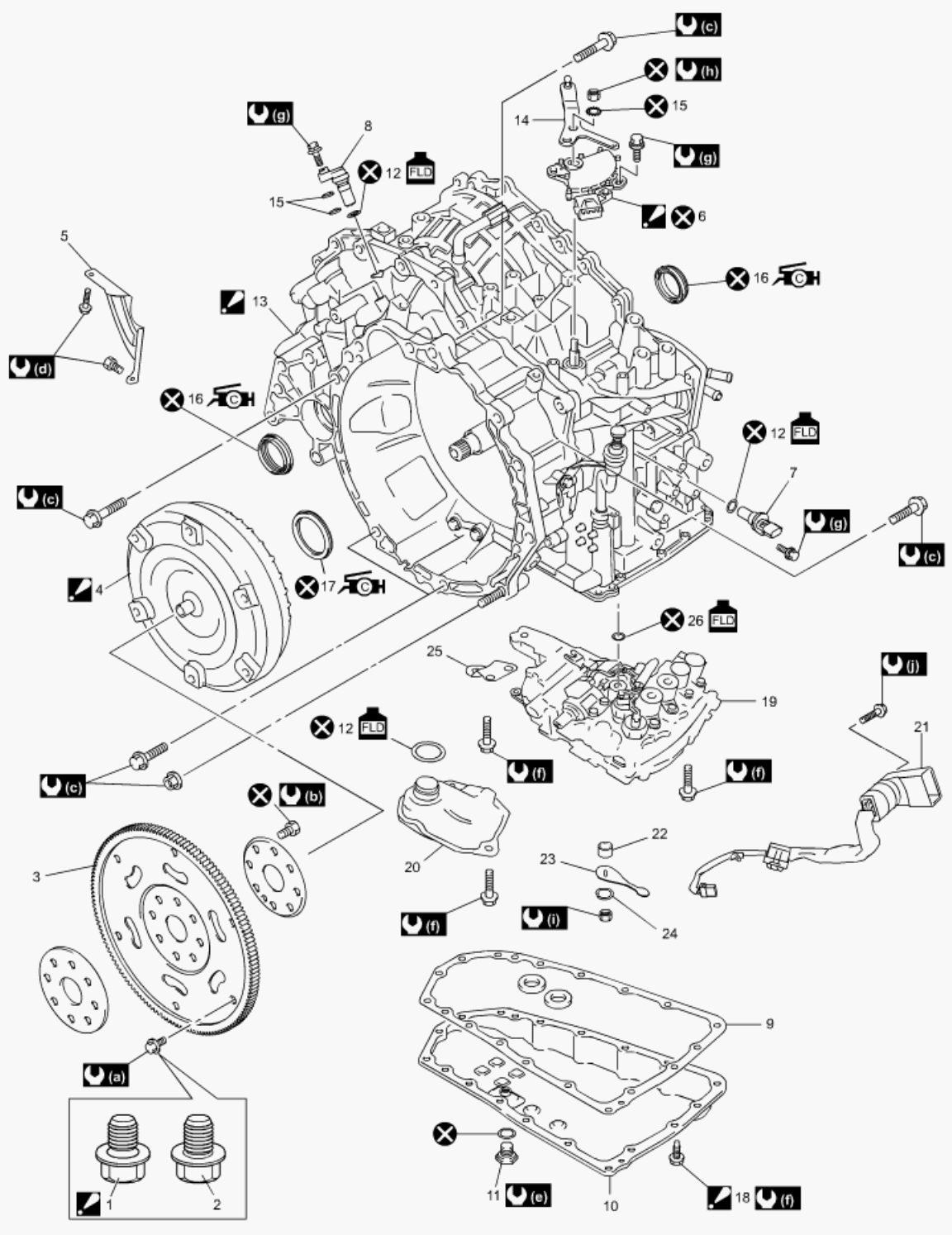

Fig 1: Identifying CVT Assembly Components (1 Of 2)
G00520587Courtesy of SUZUKI OF AMERICA CORP.

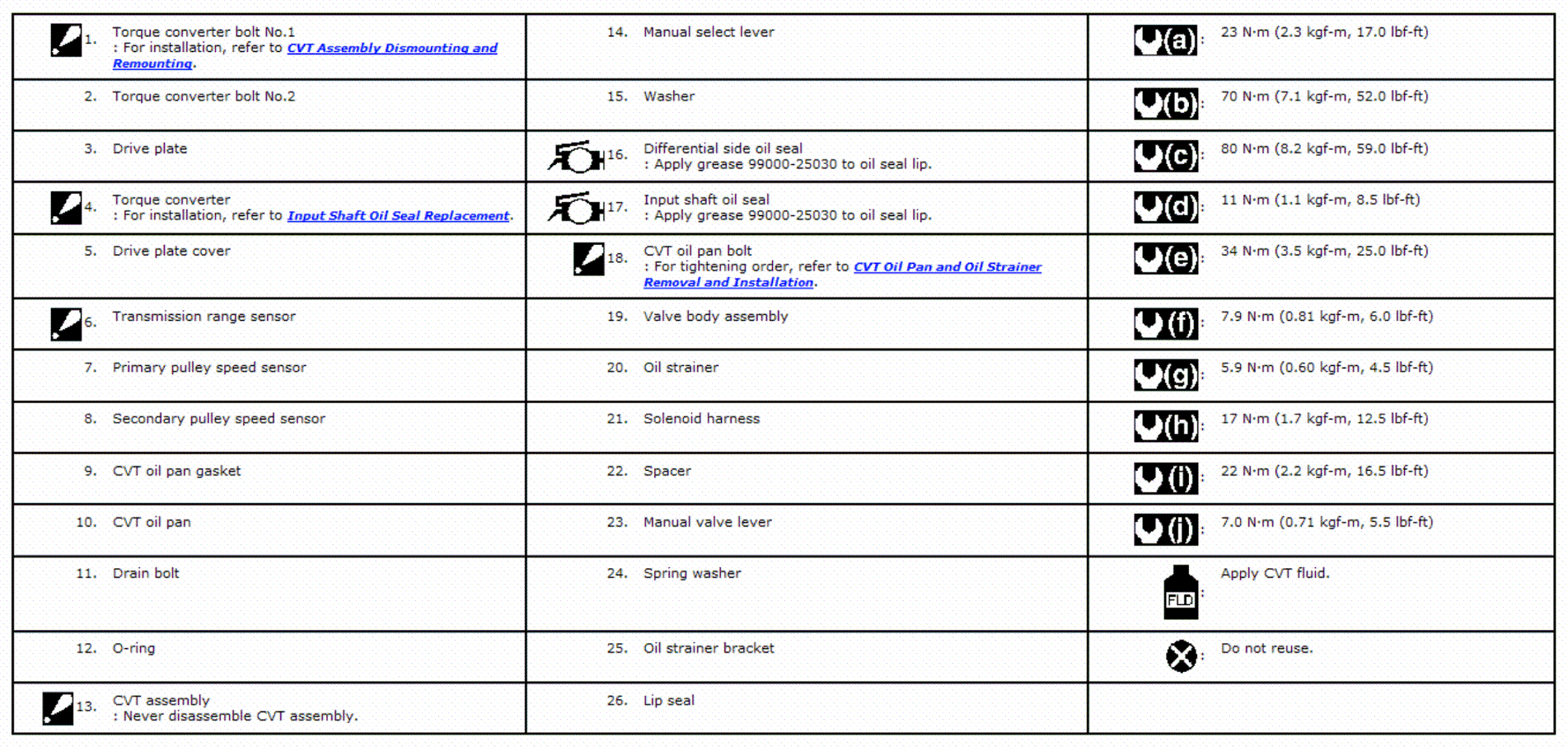

Fig 2: Identifying CVT Assembly Components (2 Of 2)
G00520588Courtesy of SUZUKI OF AMERICA CORP.
