Section 1 (Continuously Variable Transaxle (CVT))
>>
Diagnostic Information and Procedures
>>
DTC P1824: Calibration Data Reading Error
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

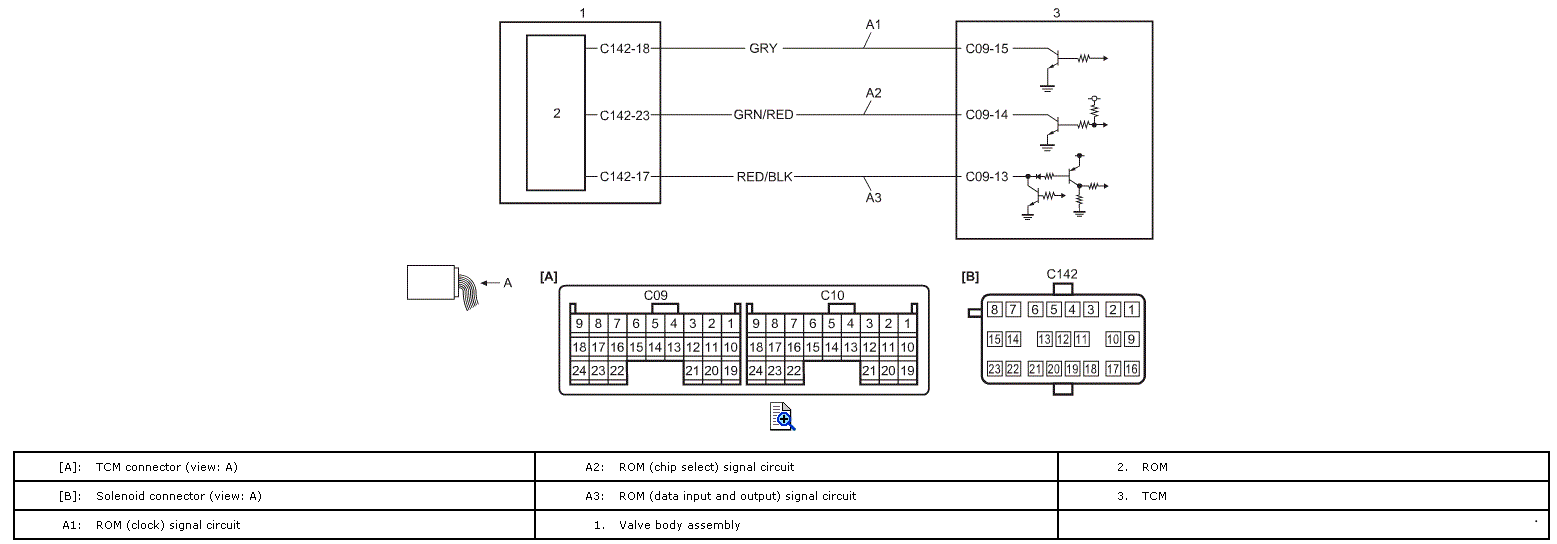

Fig 1: Detecting Condition And Trouble Area Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
