Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

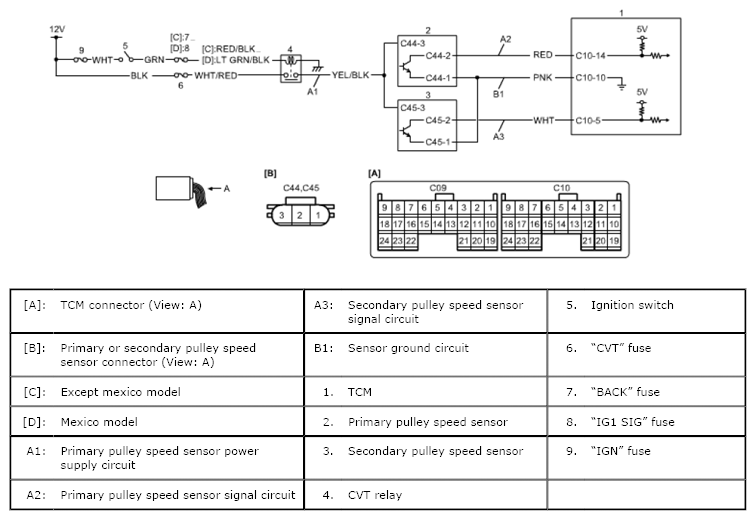

Fig 1: Input/Turbine Speed Sensor "A" Circuit Range/Performance Circuit Diagram
G06866741Courtesy of SUZUKI OF AMERICA CORP.
