Reference Waveform
WARNING: This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

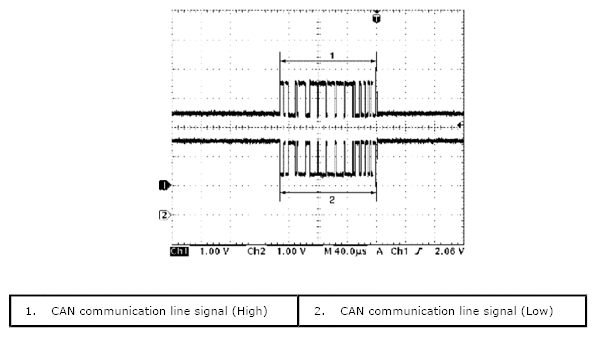

Courtesy of SUZUKI OF AMERICA CORP. ID CONTROLLER CONNECTOR WAVEFORM REFERENCE CHART
| Measurement terminals |
CH1: G29-4 to G29-1
CH2: G29-5 to G29-1 |
| Oscilloscope settings |
CH1: 1 V/DIV
CH2: 1 V/DIV
TIME: 40 μs |
| Measurement condition |
Ignition switch at ON position |
