Section 73 (Immobilizer Control System)
>>
Component Location
>>
Immobilizer Control System Component Location
Immobilizer Control System Component Location
WARNING:
This page is about a different car, the 2011 Suzuki SX4. However, it is still accessible from the selected car via links, so may be relevant.

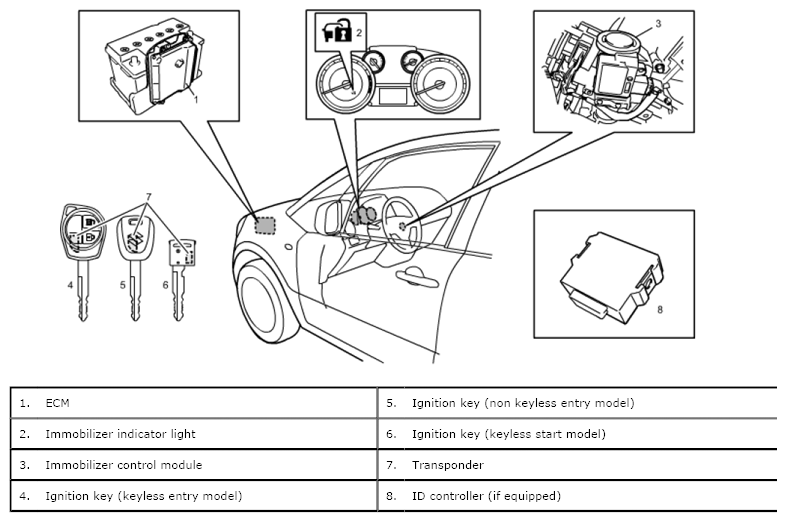

Fig 1: Immobilizer Control System Components Location
Courtesy of SUZUKI OF AMERICA CORP.
