Fuel Injector Control System Circuit Diagram: Wiring Diagram

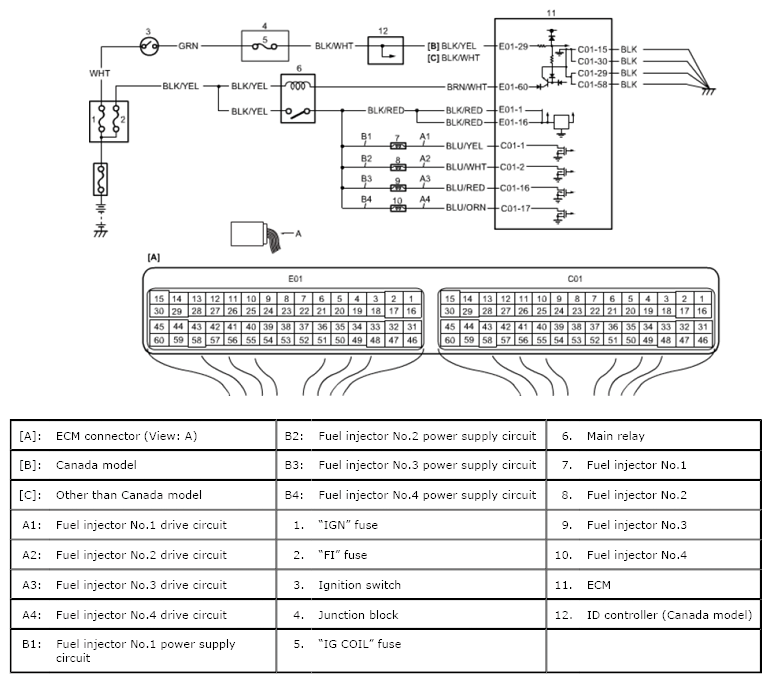

Fig 1: Fuel Injector Control System Circuit Diagram

G06867159

Courtesy of SUZUKI OF AMERICA CORP.
