G-2 Accessory Socket System Circuit Diagram

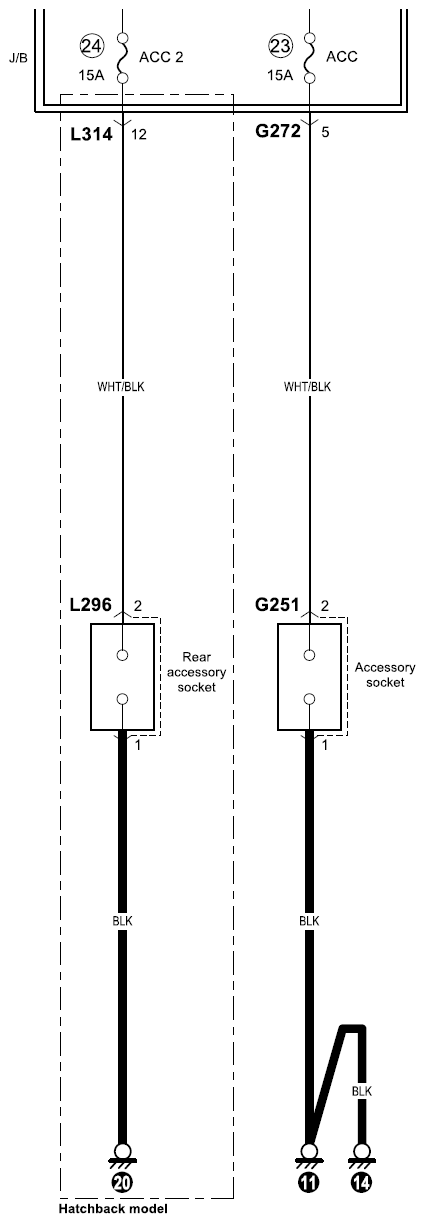

Fig 1: G-2 Accessory Socket System Circuit Diagram

G06871282

Courtesy of SUZUKI OF AMERICA CORP.
