B-9 Keyless Start System Circuit Diagram

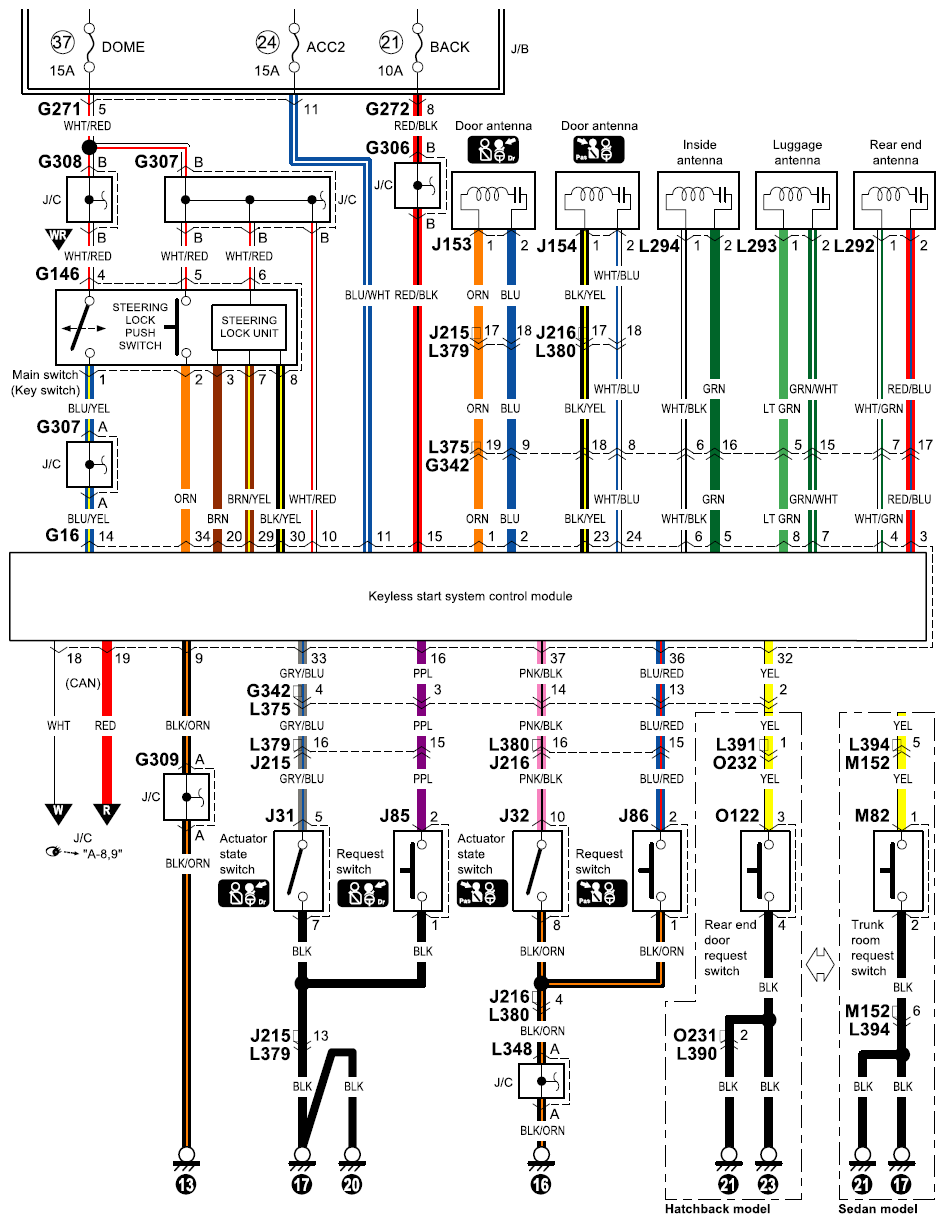

Fig 1: B-9 Keyless Start System Circuit Diagram

G06871248

Courtesy of SUZUKI OF AMERICA CORP.
