A-6 CVT Control System Circuit Diagram

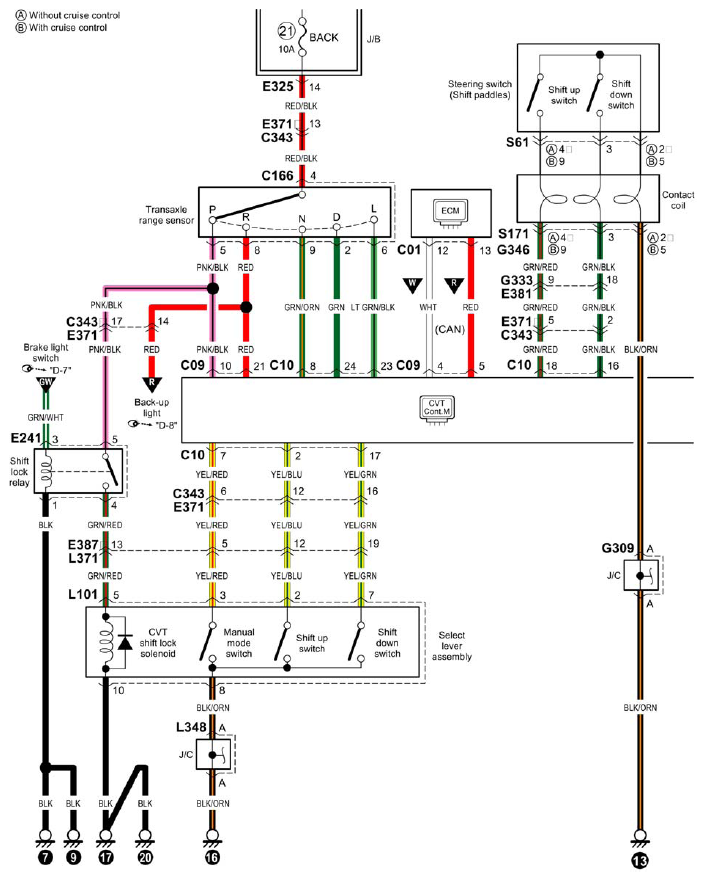

Fig 1: A-6 CVT Control System Circuit Diagram (1 Of 2)
G06871226Courtesy of SUZUKI OF AMERICA CORP.

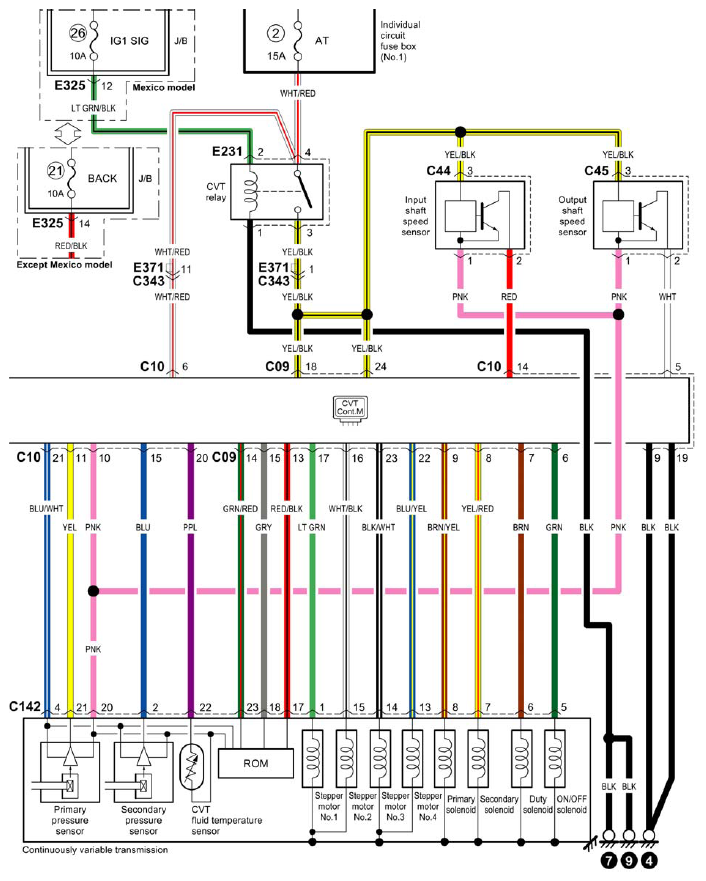

Fig 2: A-6 CVT Control System Circuit Diagram (2 Of 2)
G06871227Courtesy of SUZUKI OF AMERICA CORP.
