Right Side (Hatchback)

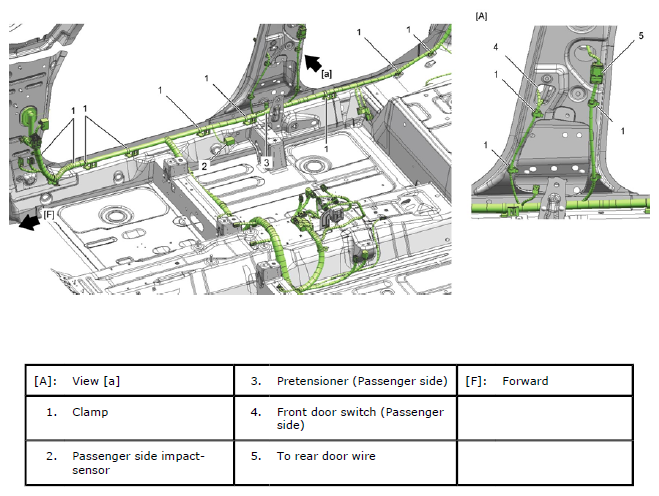

Fig 1: Identifying Right Side Harness (Hatchback Model) (1 Of 2)
G06871311Courtesy of SUZUKI OF AMERICA CORP.

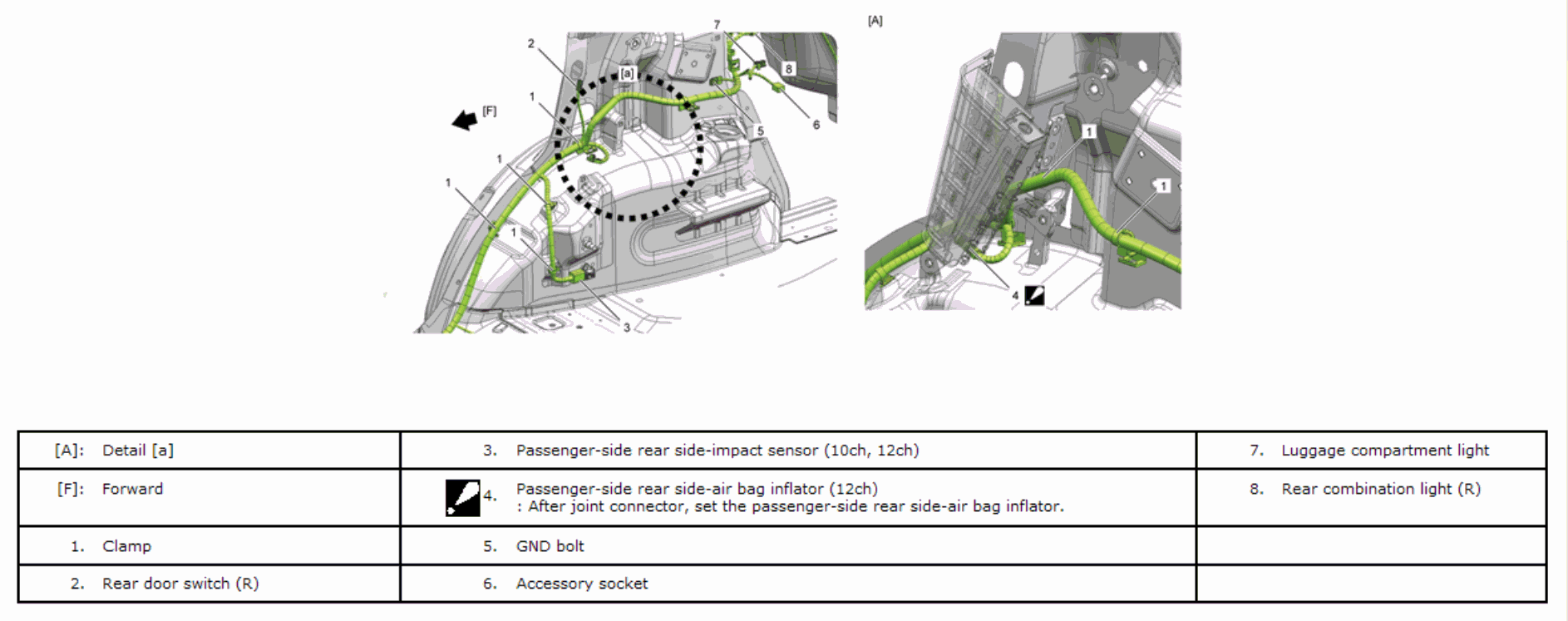

Fig 2: Identifying Right Side Harness (Hatchback Model) (2 Of 2)
G00520592Courtesy of SUZUKI OF AMERICA CORP.
