Left Side (Hatchback)

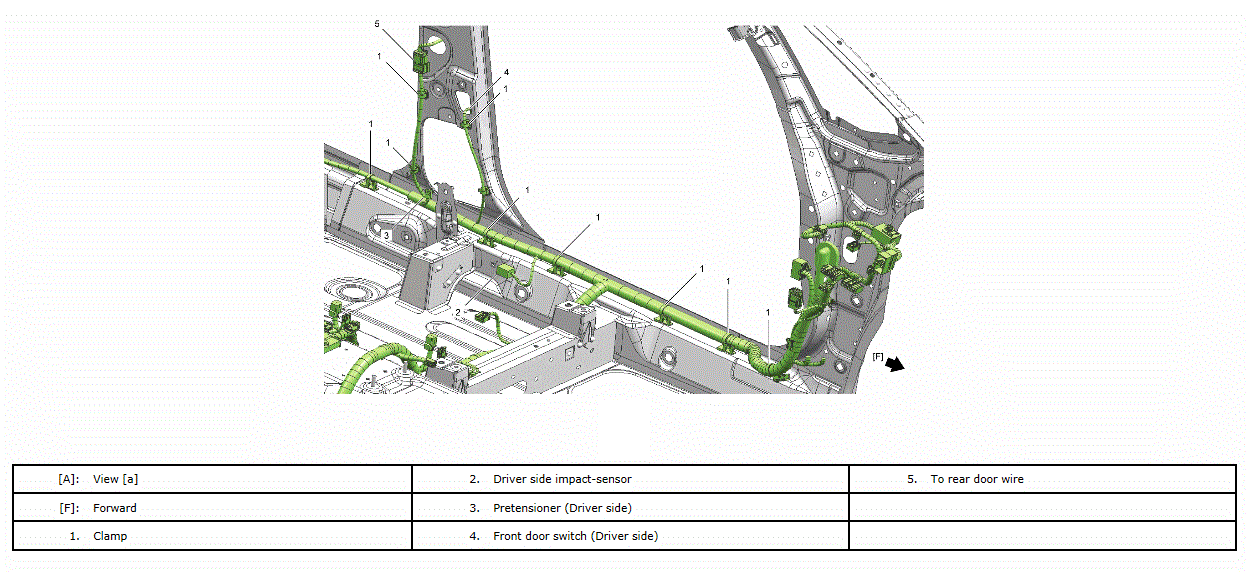

Fig 1: Identifying Left Side Harness (Hatchback Model) (1 Of 2)
G00539317Courtesy of SUZUKI OF AMERICA CORP.

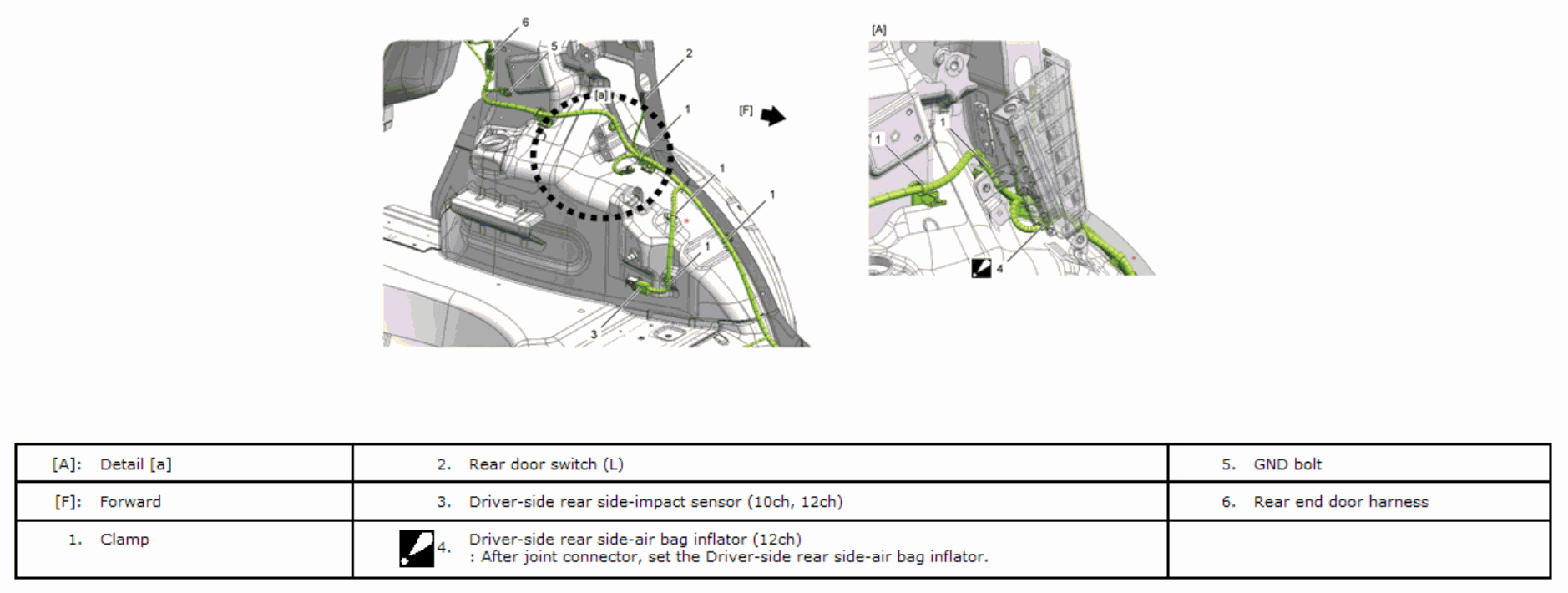

Fig 2: Identifying Left Side Harness (Hatchback Model) (2 Of 2)
G00520593Courtesy of SUZUKI OF AMERICA CORP.
