Wiring Systems
>>
Ground Point
>>
Ground (Earth) Point
Ground (Earth) Point
Reference:
HOW TO READ SYSTEM CIRCUIT DIAGRAM
Refer to
CONNECTOR LAYOUT DIAGRAM
.

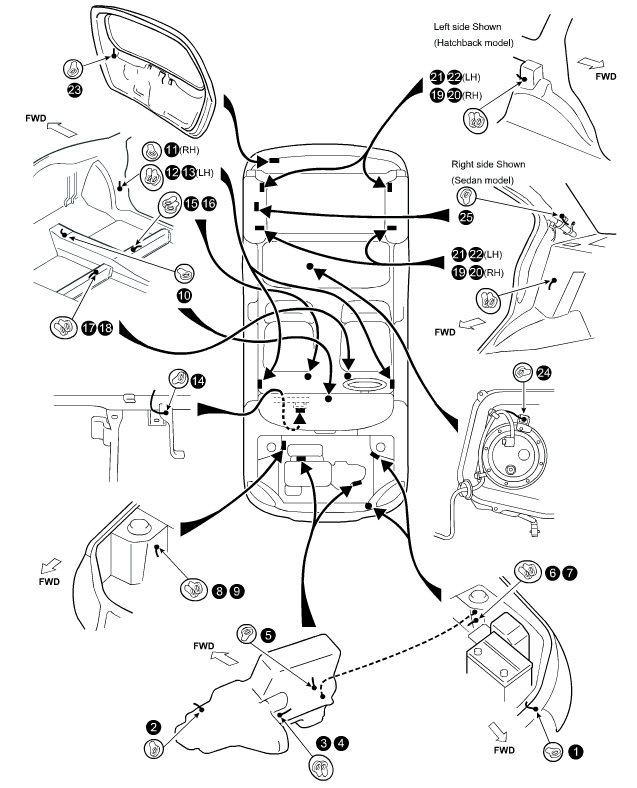

Fig 1: Identifying Ground Points Location
Courtesy of SUZUKI OF AMERICA CORP.
