BCM Removal and Installation: Removal

  1. Remove dash side trim and steering column hole cover.
  2. Remove BCM mounting bolts (1).

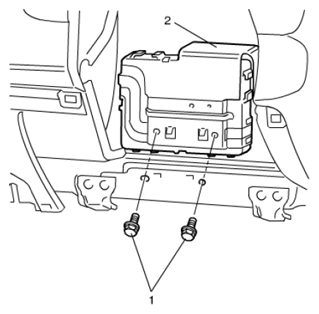

    Fig 1: Identifying BCM Mounting Bolts
    G06868112Courtesy of SUZUKI OF AMERICA CORP.
  3. Disconnect connectors from BCM (2).
