Without Using SUZUKI Scan Tool

  1. Turn ignition switch to OFF position.
  2. Perform following Steps  a) to  d) within 10 seconds after ignition switch is turned ON and engine stops.
    1. Turn headlight switch to "SMALL" position.
    2. Turn headlight switch to "OFF" position.
    3. Repeat Steps  a) and  b) 2 times.
    4. Press and release driver side door switch 3 times.
  3. Check DTC displayed on combination meter or read flashing pattern of theft deterrent light which represents DTC as shown in the following example and write it down.

    When more than 2 DTCs are stored in memory, flashing for each DTC starts with the smallest DTC number in increasing order. Also, DTC is indicated repeatedly until the ignition switch is turned OFF.

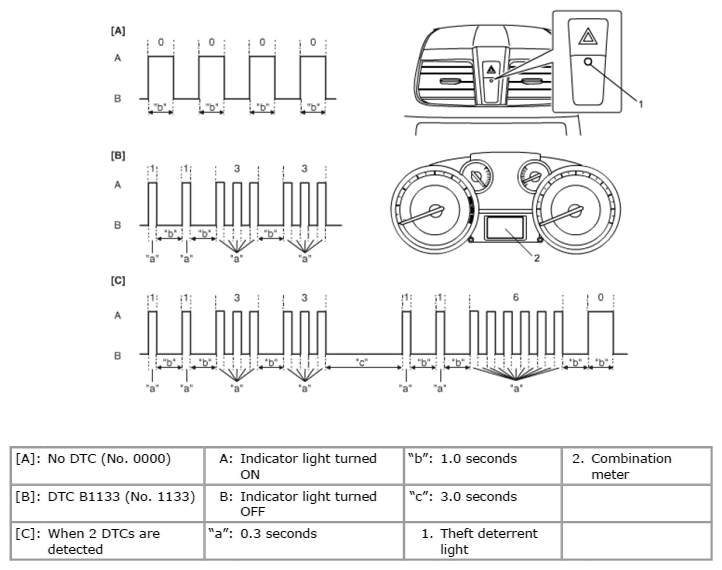

    Fig 1: Theft Deterrent Light Switch Flash Pattern
    G06868096Courtesy of SUZUKI OF AMERICA CORP.
  4. After completing the check, turn ignition switch to OFF position.
